Home >> Nissan-Datsun >> 2012 >> Altima SL >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass & Window System >> Removal And Installation >> Rear Regulator >> Components

Rear Regulator: Components

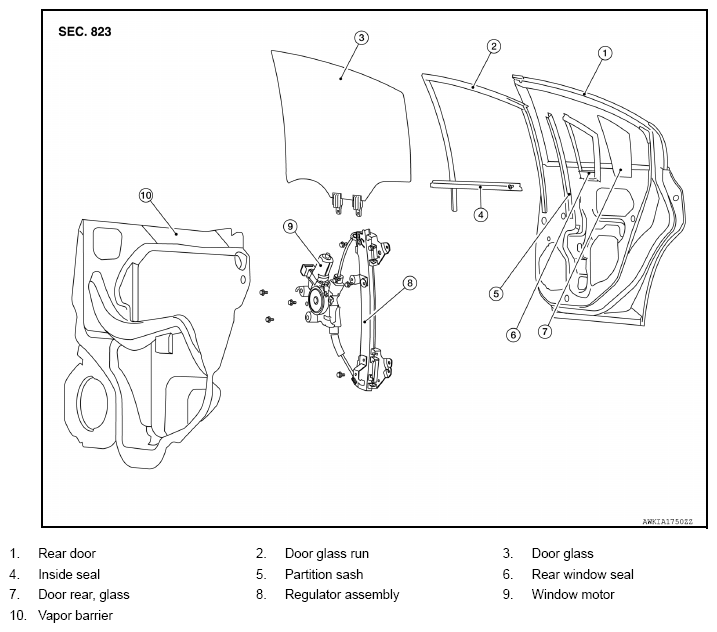

Fig 1: Identifying Rear Regulator Components

G08438581

Courtesy of NISSAN NORTH AMERICA, INC.
