Exploded View
Exploded View

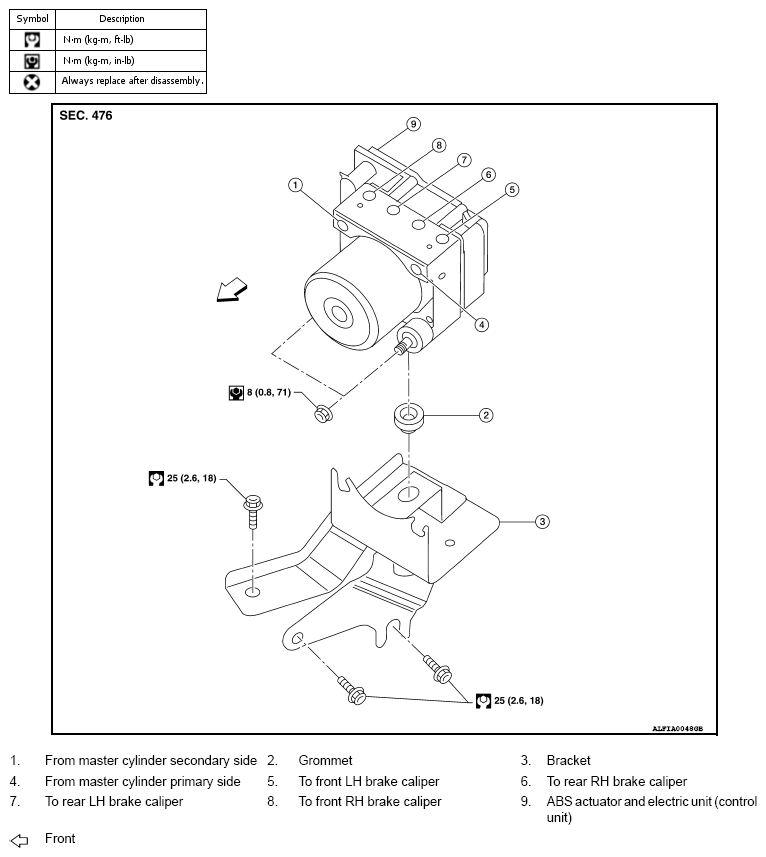

Fig 1: Exploded View Of ABS Actuator And Electric Control Unit With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
