Front Regulator
>>
Exploded View
Exploded View

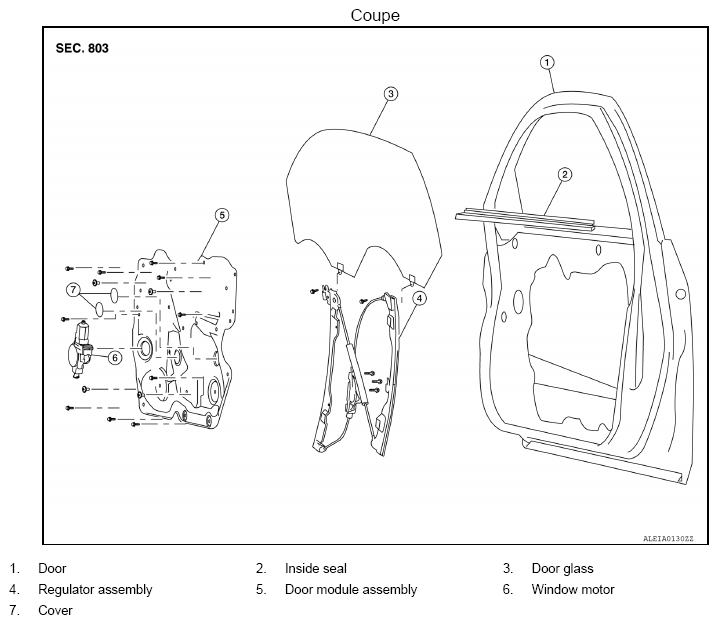

Fig 1: Exploded View Of Front Regulator - Coupe
Courtesy of NISSAN NORTH AMERICA, INC.

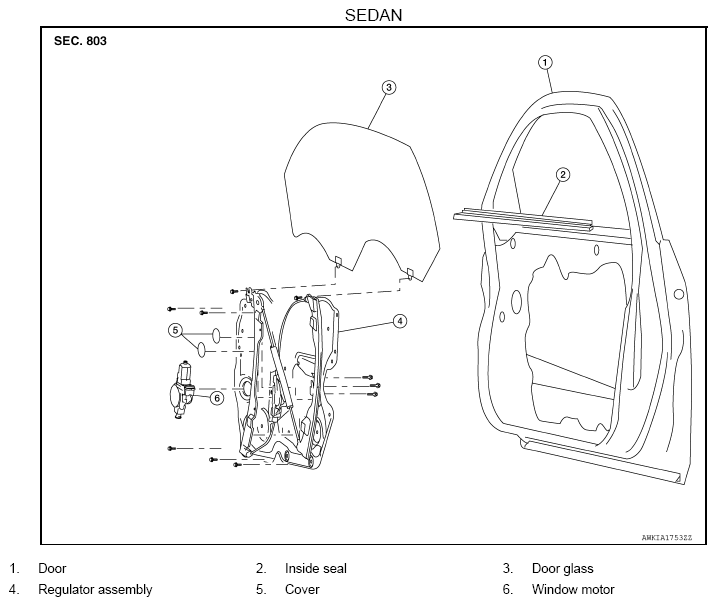

Fig 2: Exploded View Of Front Regulator - Sedan
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
