Exploded View

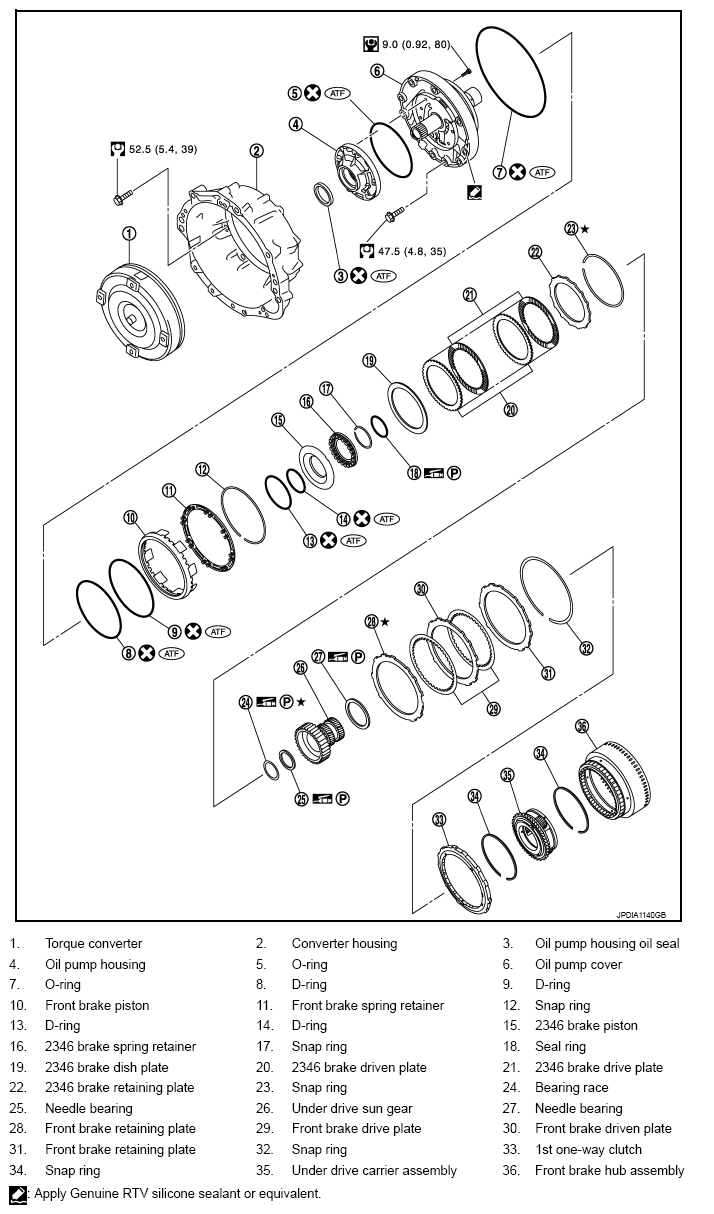

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols not described on the above.

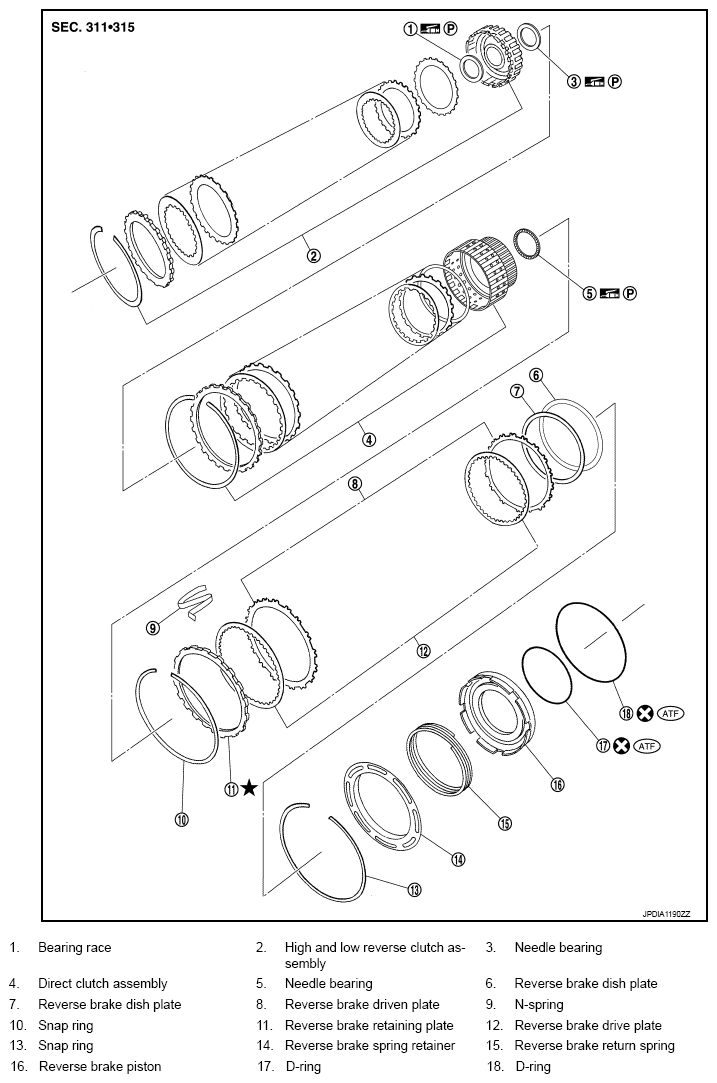

Fig 2: Exploded View Of Transmission Assembly (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols not described on the above.

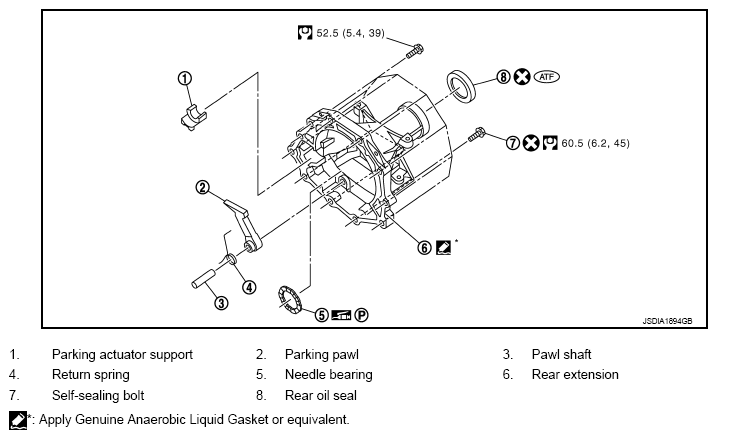

Fig 3: Exploded View Of Transmission Assembly With (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.

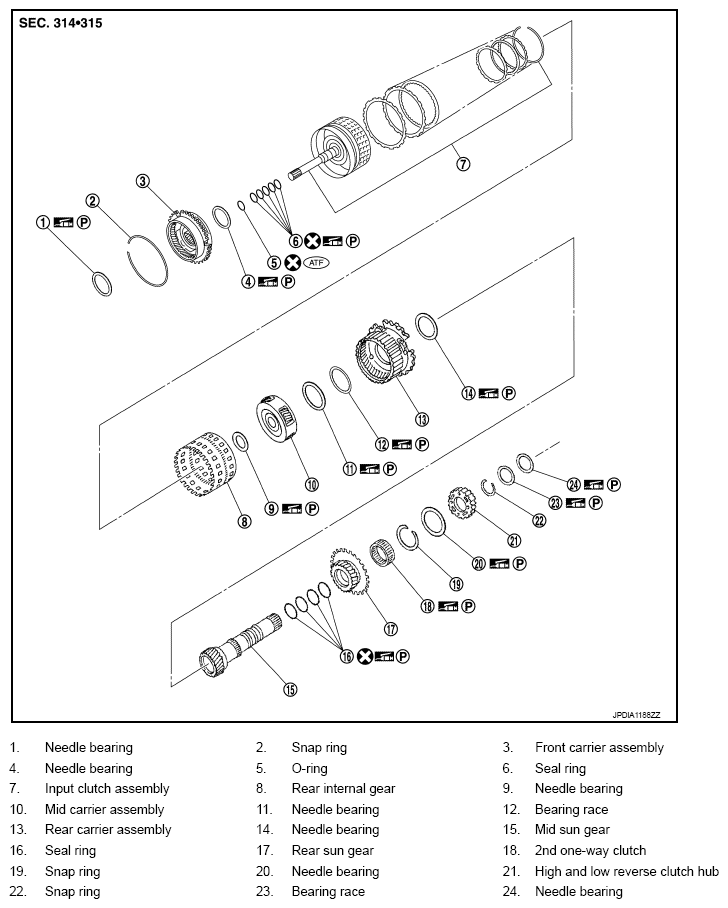

Fig 4: Exploded View Of Transmission Assembly With Torque Specifications (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.

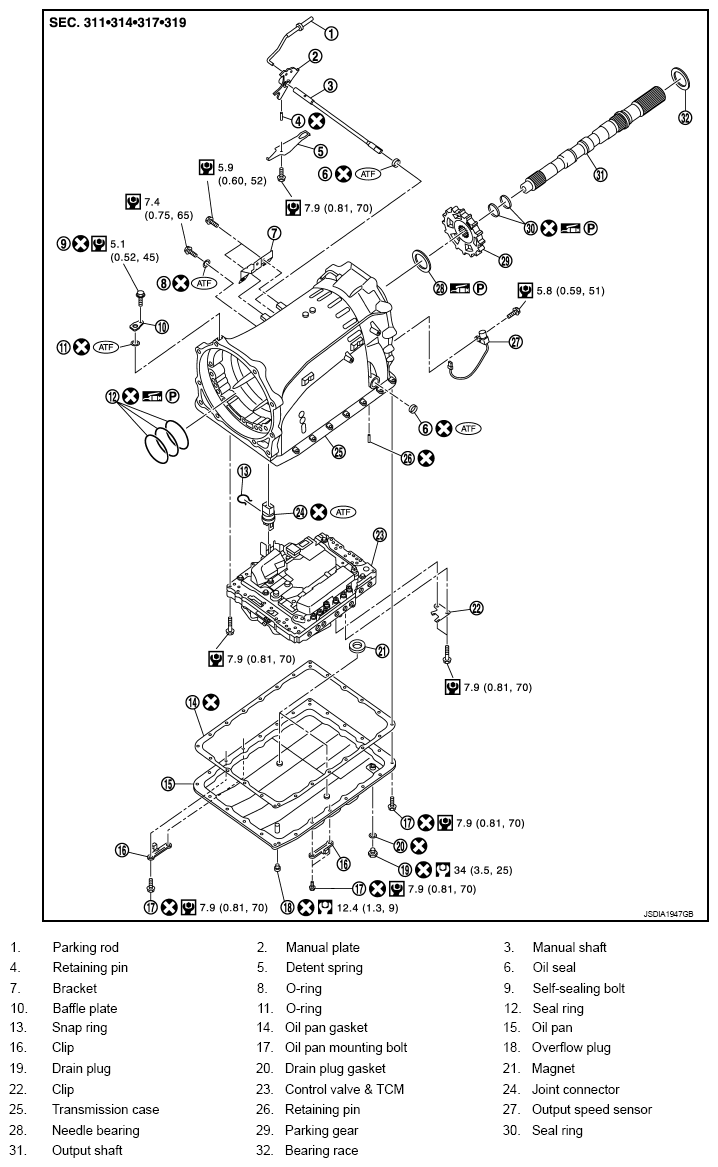

Fig 5: Exploded View Of Transmission Assembly With Torque Specifications (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols in the figure.
