SHIFT PATTERN: Component Parts Location

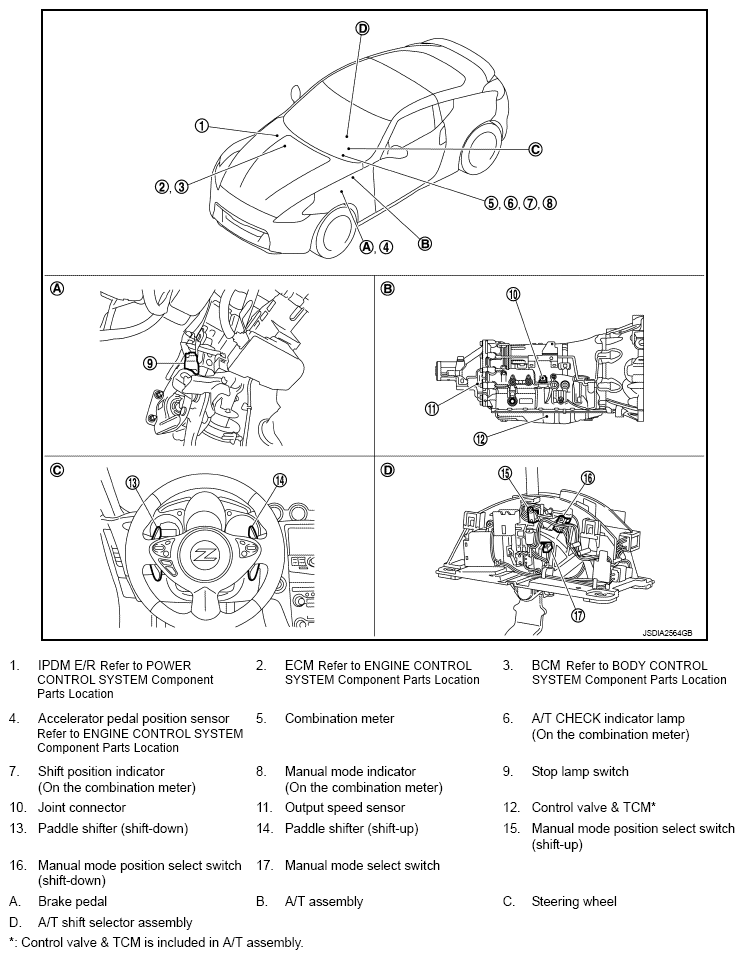

Fig 1: Shift Pattern Component Parts Location (1 Of 2)

G08103986

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The following components are included in control valve & TCM.

TCM
Input speed sensor 1, 2
A/T fluid temperature sensor
Transmission range switch
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Input clutch solenoid valve
Front brake solenoid valve
Low brake solenoid valve
Anti-interlock solenoid valve
2346 brake solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve

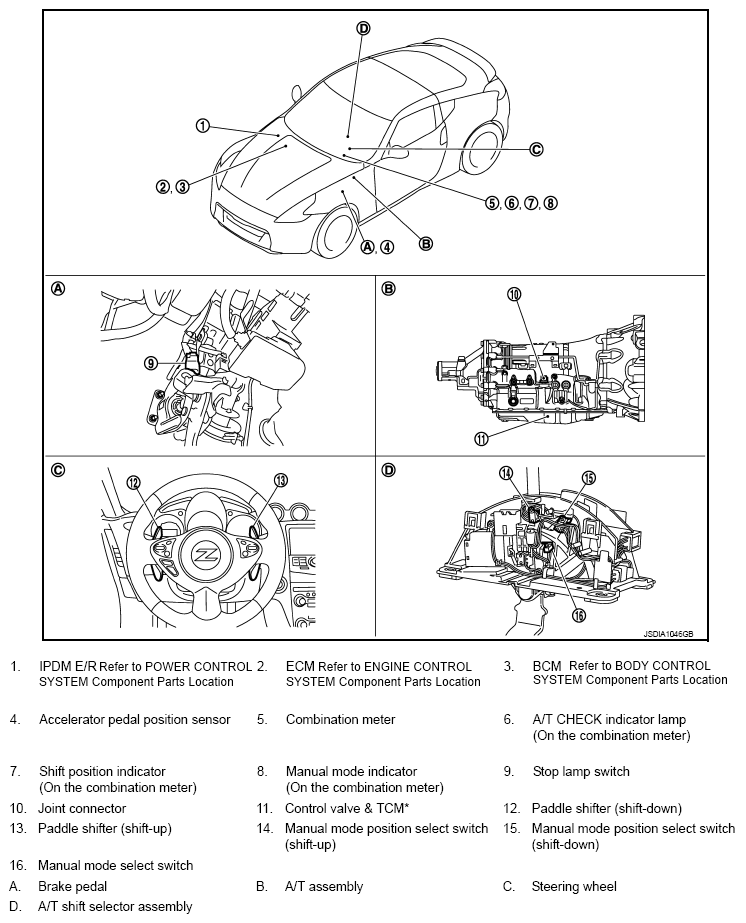

Fig 1: Shift Pattern Component Parts Location (2 Of 2)

G08103987

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: The following components are included in control valve & TCM.

TCM
Input speed sensor 1, 2
Output speed sensor
A/T fluid temperature sensor
Transmission range switch
Direct clutch solenoid valve
High and low reverse clutch solenoid valve
Input clutch solenoid valve
Front brake solenoid valve
Low brake solenoid valve
Anti-interlock solenoid valve
2346 brake solenoid valve
Line pressure solenoid valve
Torque converter clutch solenoid valve

*: Control valve & TCM is included in A/T assembly.
