MANUAL MODE: System Diagram

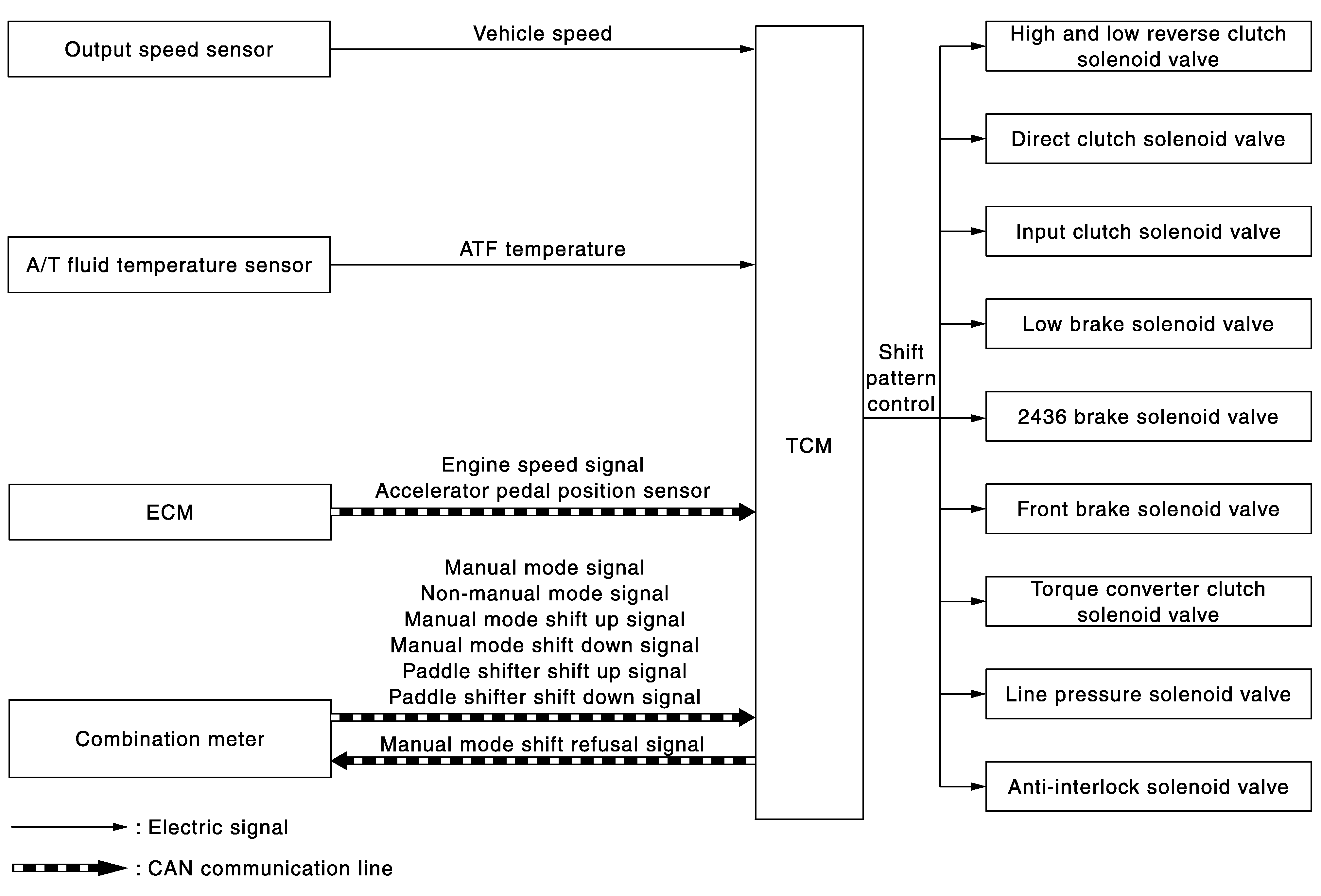

Fig 1: Identifying Manual Mode System Diagram

G06572340

Courtesy of NISSAN NORTH AMERICA, INC.
