Exploded View

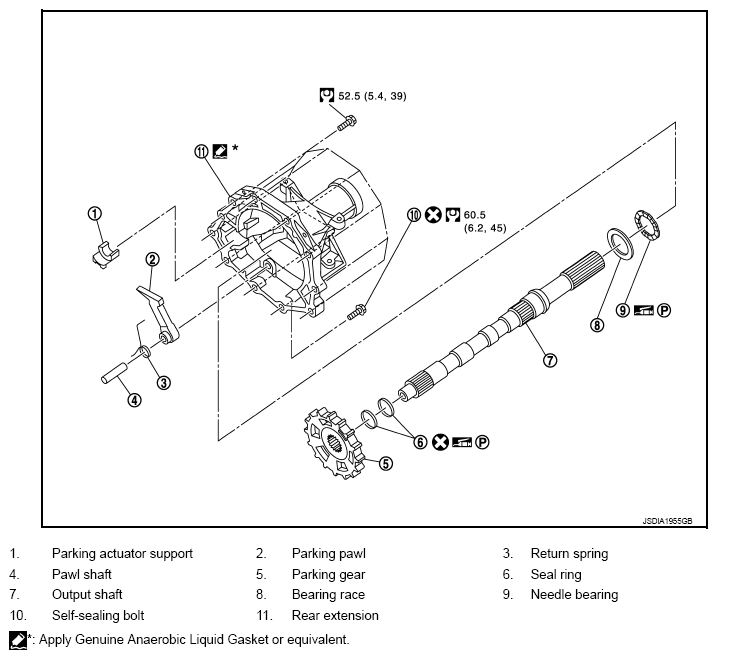

Fig 1: Exploded View Of Parking Components With Torque Specifications

G08104077

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to COMPONENTS for symbols not described on the above.
