Exploded View
Exploded View

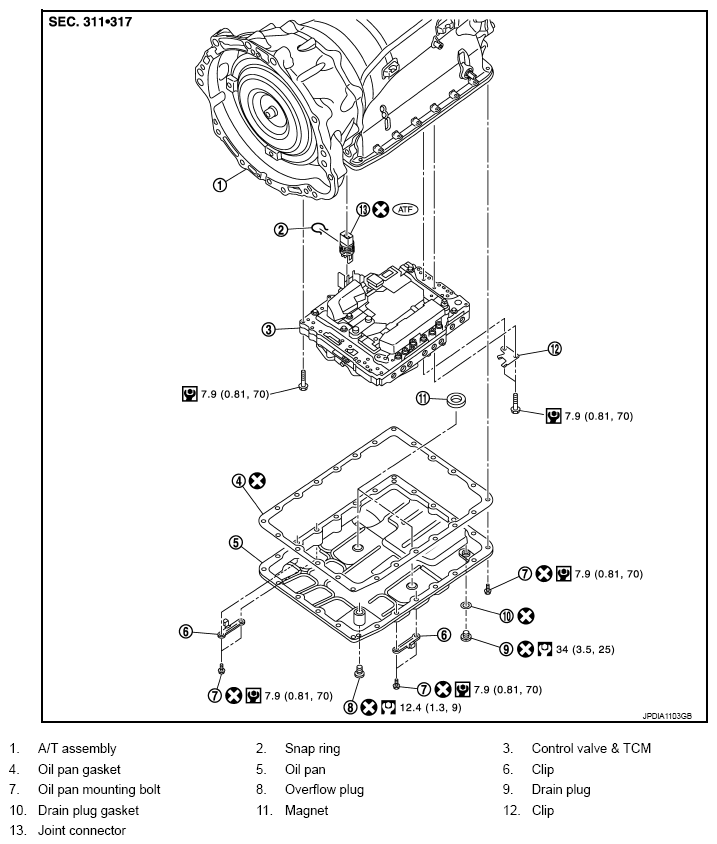

Fig 1: Exploded View Of Control Valve With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols in the figure.
