Exploded View
Exploded View

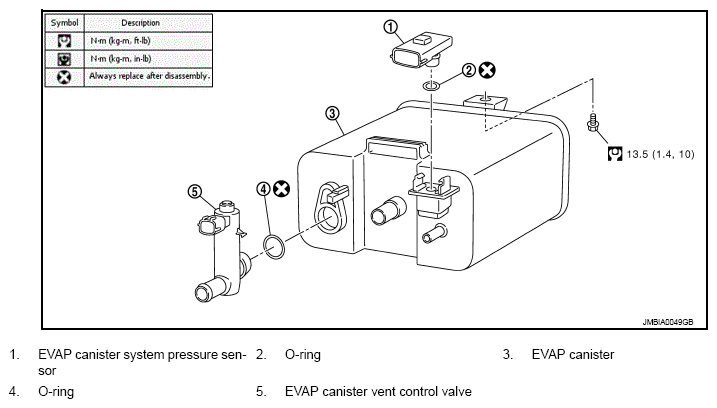

Fig 1: Exploded View Of EVAP Canister With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to ,
CONTENTS
for symbols not described on the above.
