Alternator
>>
Exploded View
>>
Removal
Exploded View: Removal

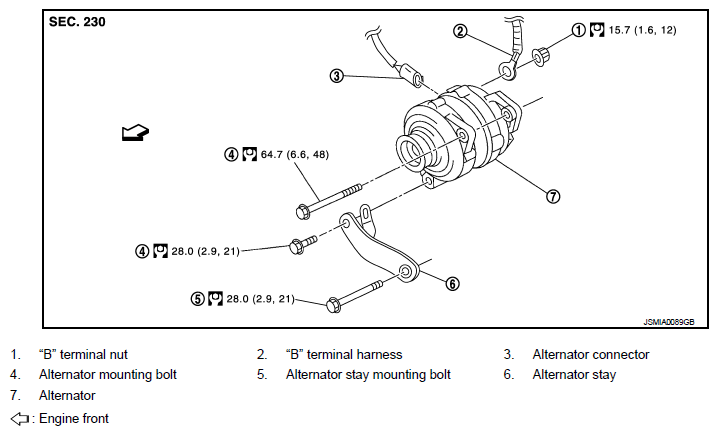

Fig 1: Exploded View Of Alternator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to ,
COMPONENTS
for symbols in the figure.
