Control Cable Components

Refer to the figure below for control cable removal and installation procedure.

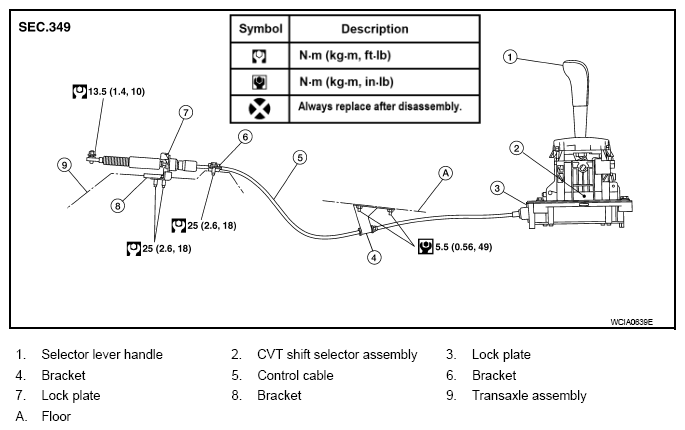

Fig 1: Locations Of Control Cable Components With Torque Specifications
G06547858Courtesy of NISSAN MOTOR CO., U.S.A.
