Home >> Nissan-Datsun >> 2011 >> Versa SL, 4D Hatchback >> Repair and Diagnosis >> Transmission >> Automatic Trans >> CVT >> Service Information >> Key Interlock Cable >> Removal and Installation >> Components

Removal and Installation: Components

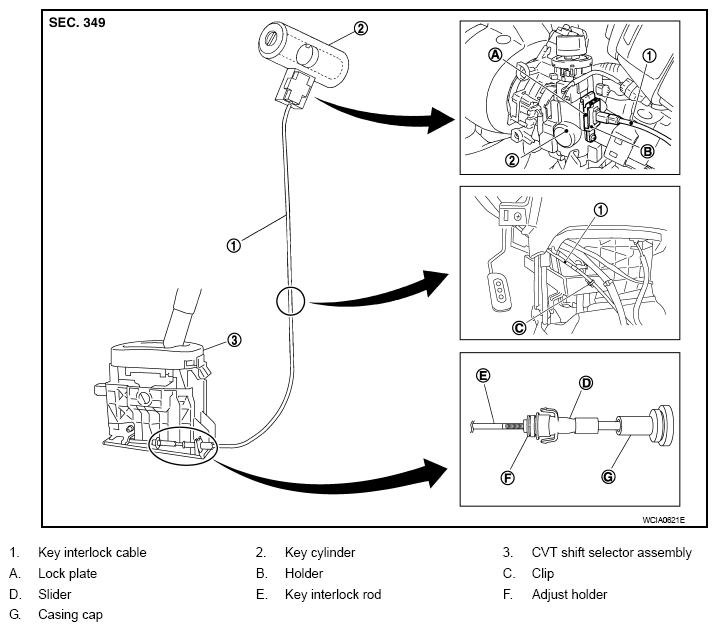

Fig 1: Locating Key Interlock Cable Components

G06547871

Courtesy of NISSAN MOTOR CO., U.S.A.
