Hydraulic Control System

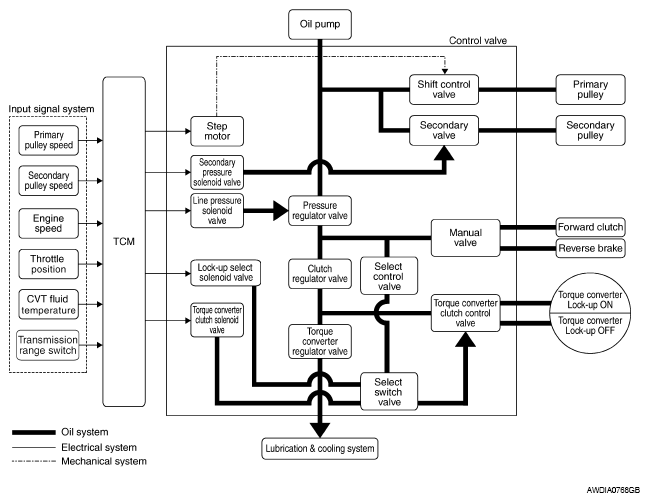

Fig 1: Hydraulic Control System Flow Diagram
G06547719Courtesy of NISSAN MOTOR CO., U.S.A.
