Exploded View

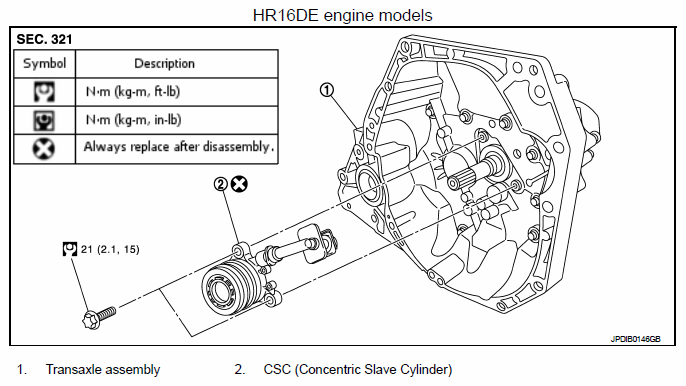

Fig 1: Exploded View Of CSC (Concentric Slave Cylinder) - HR16DE Engine Models With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

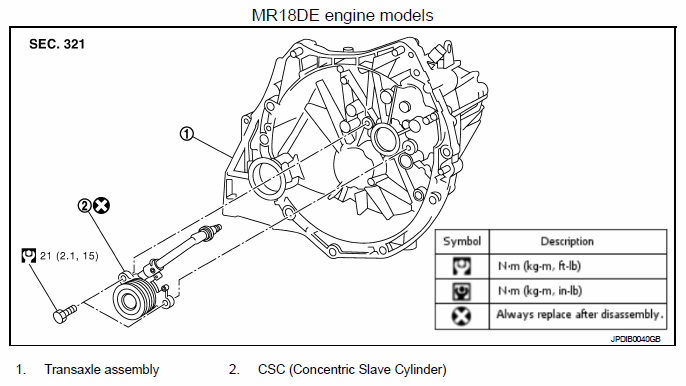

Fig 2: Exploded View Of CSC (Concentric Slave Cylinder) - MR18DE Engine Models With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Never reuse CSC (Concentric Slave Cylinder). Because CSC slides back to the original position every time when removing transaxle assembly. At this timing, dust on the sliding parts may damage a seal of CSC and may cause clutch fluid leakage.
Never disassemble CSC.
Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately and wash the affected area with water.
