Overdrive Control Switch
>>
Wiring Diagram - CVT - ODSW
>>
Notes
Wiring Diagram - CVT - ODSW: Notes
WARNING:
This page is about a different variant/trim than selected.

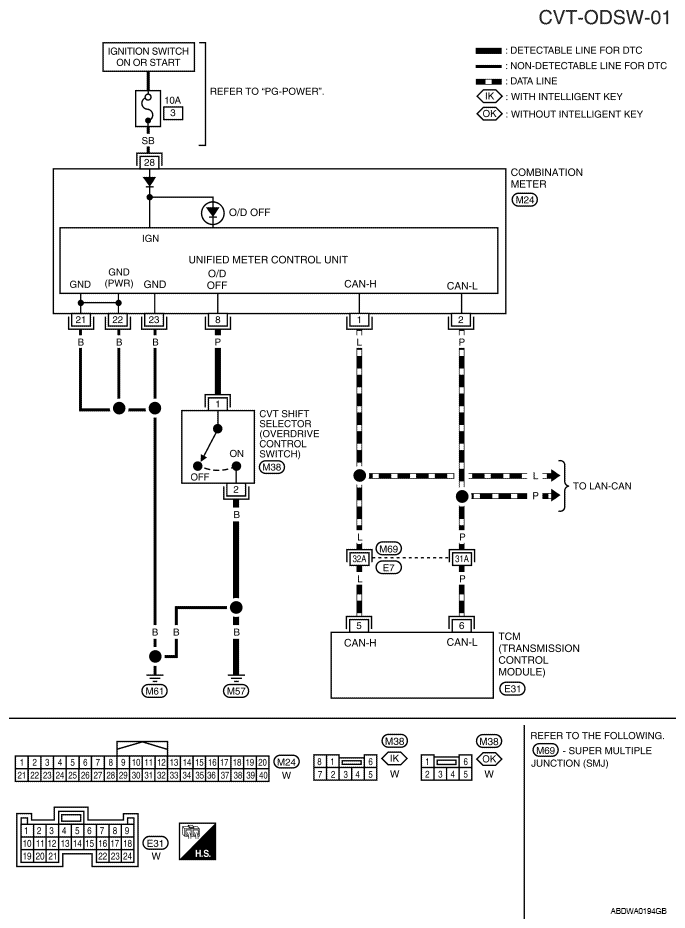

Fig 1: CVT-ODSW-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
