Section 2 (CVT)
>>
Service Information
>>
CVT System
>>

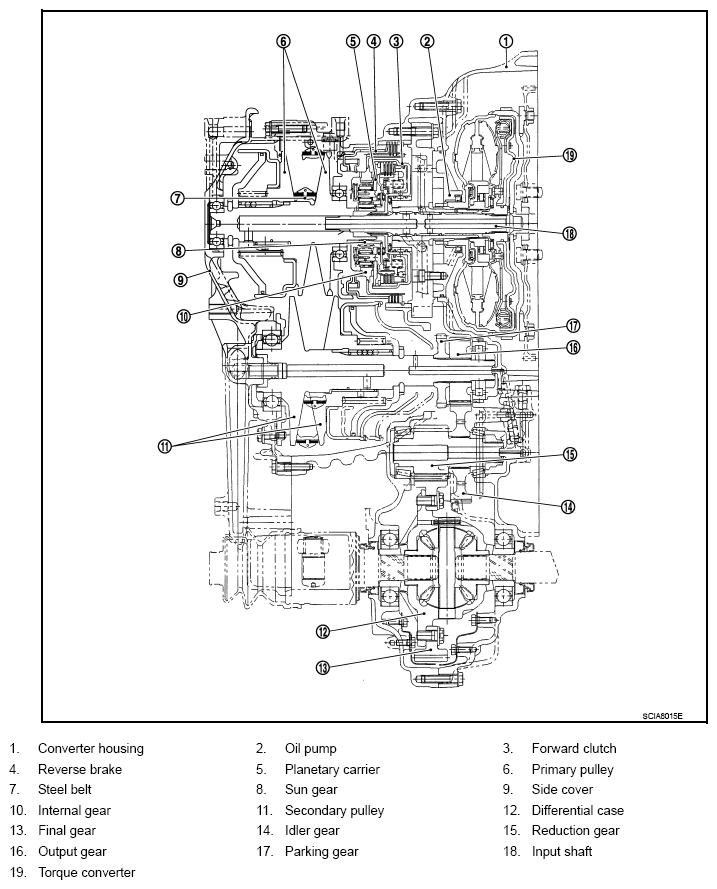

Cross-Sectional View - RE0F08B
Cross-Sectional View - RE0F08B
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Location Of CVT System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
