Home
>>
Nissan-Datsun
>>
2011
>>
Versa Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel
>>
On-Vehicle Repair
>>
Instrument Panel Assembly
>>
Component Parts
Component Parts

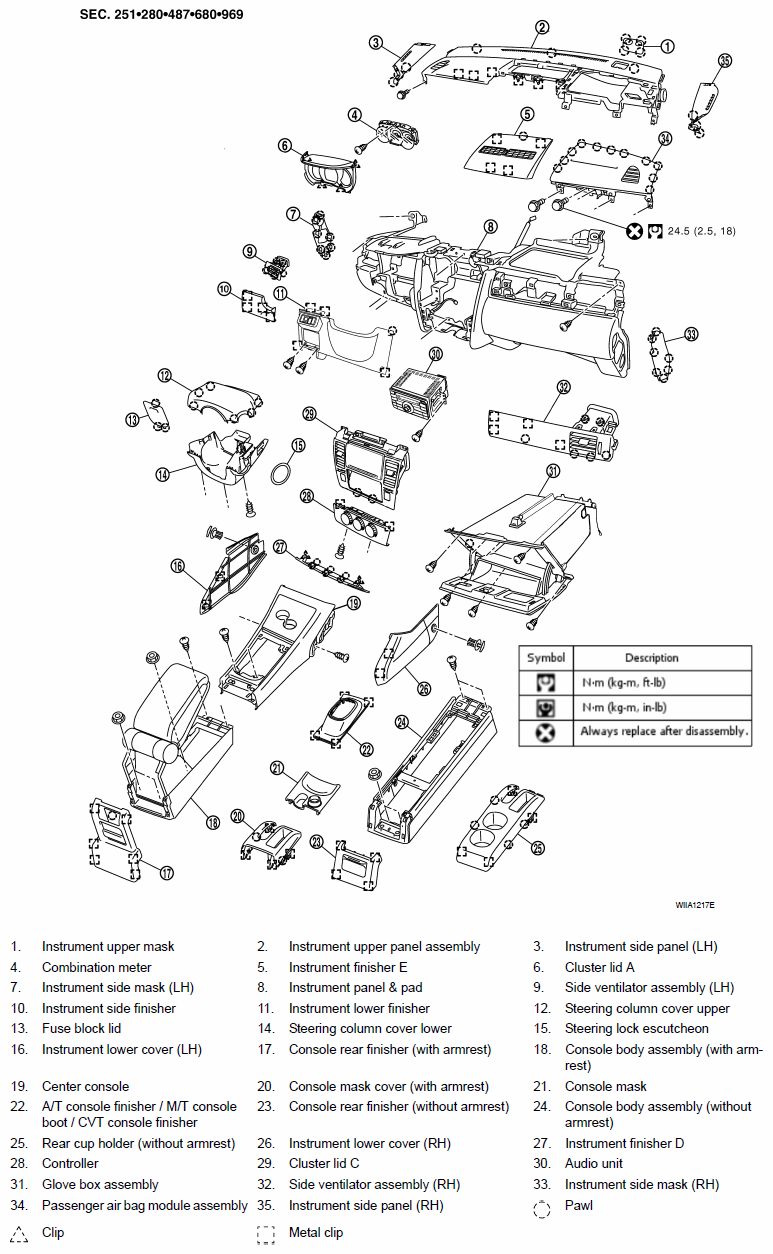

Fig 1: Exploded View Of Instrument Panel Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
