Oil Pump: Components

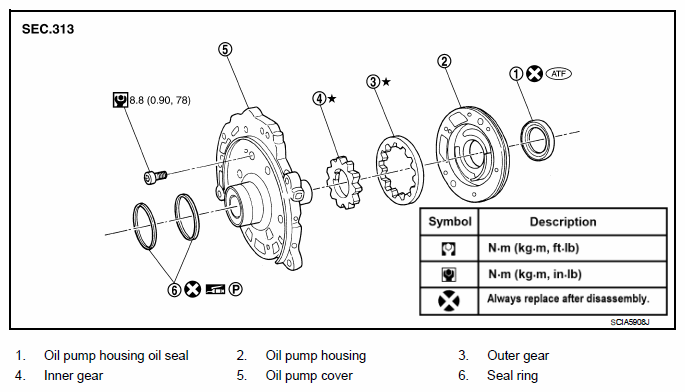

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications

G06538737

Courtesy of NISSAN MOTOR CO., U.S.A.
