Band Servo Piston Assembly
>>
Components
Band Servo Piston Assembly: Components

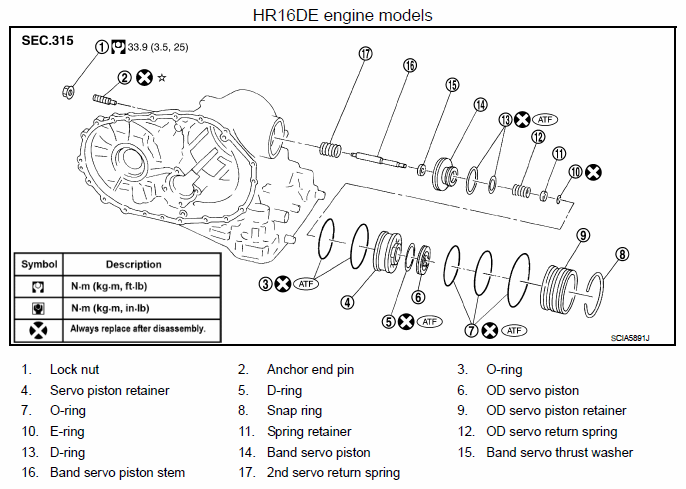

Fig 1: Exploded View Of Band Servo Piston Assembly Components (HR16DE Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

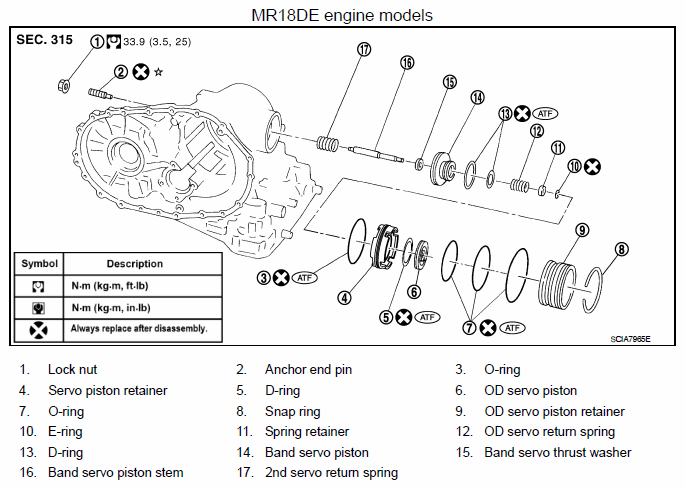

Fig 2: Exploded View Of Band Servo Piston Assembly Components (MR18DE Engine Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
