Transmission Range Switch: Components

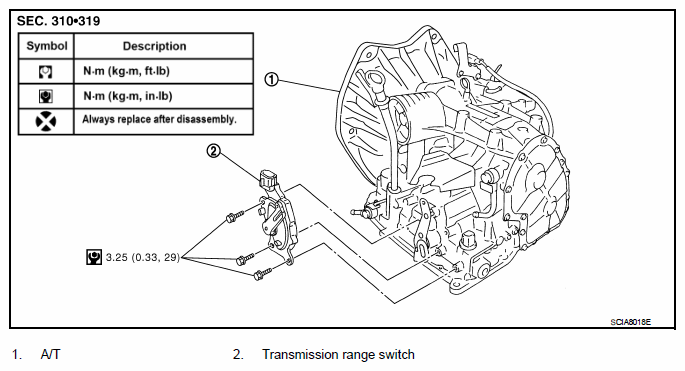

Fig 1: Identifying Transmission Range Switch Components

G06538611

Courtesy of NISSAN MOTOR CO., U.S.A.
