Control Valve Assembly and Accumulators: Components

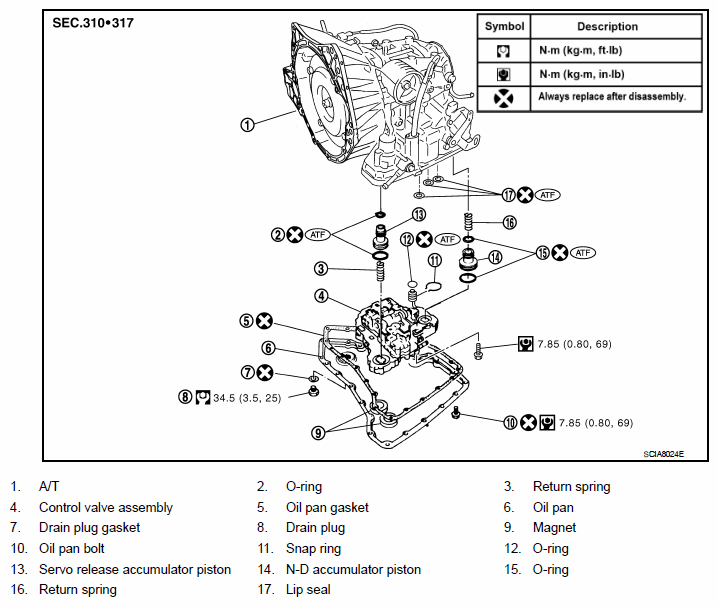

Fig 1: Identifying Control Valve Assembly And Accumulators Components

G06538598

Courtesy of NISSAN MOTOR CO., U.S.A.
