Engine Control System - Introduction (Hr16DE)
>>
Function Diagnosis
>>
Engine Control System
>>
System Diagram
System Diagram

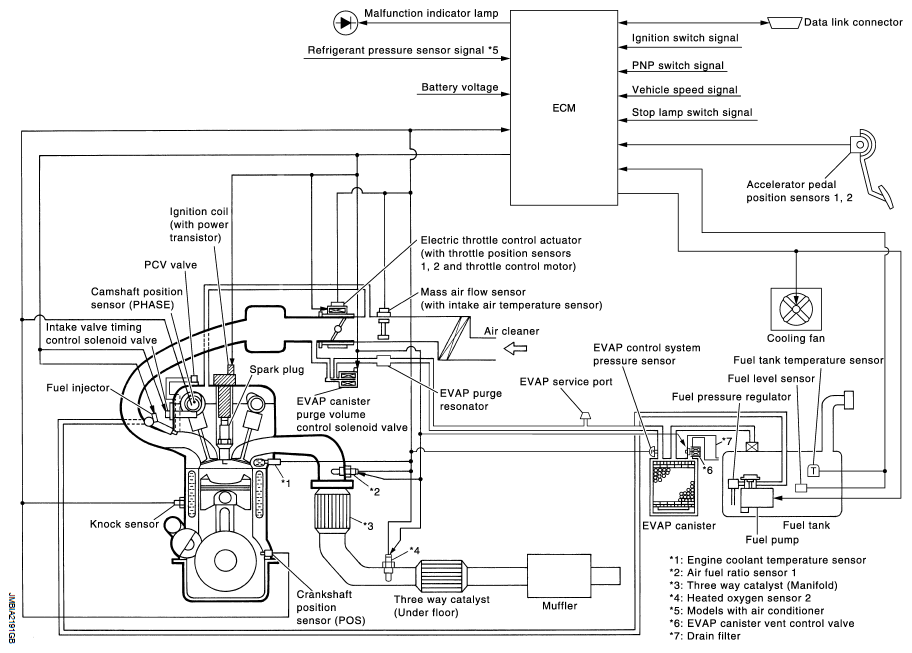

Fig 1: Engine Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
