Engine Control System - Introduction (Hr16DE)
>>
Function Diagnosis
>>
Engine Control System
>>
Component Parts Location
Component Parts Location

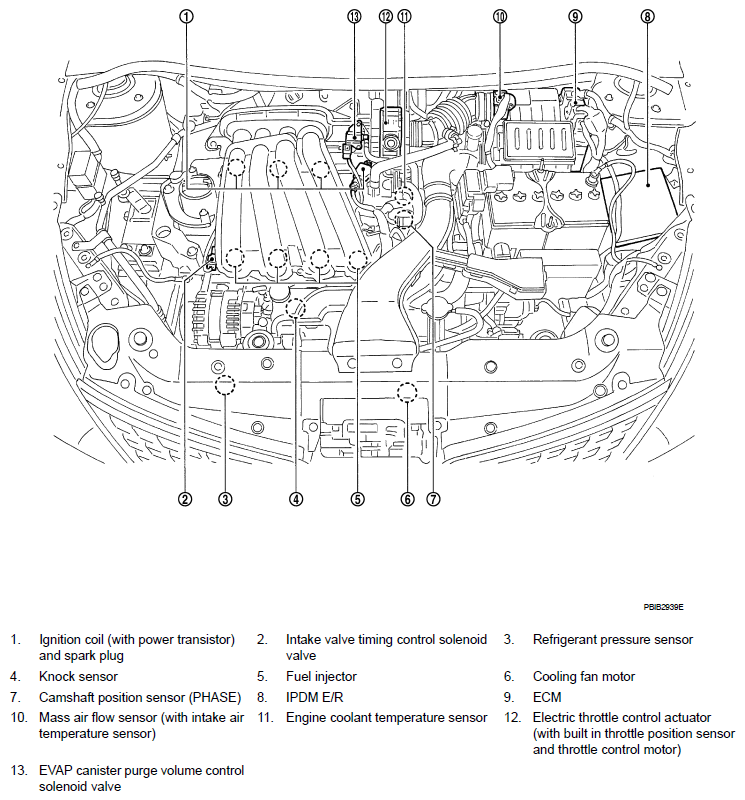

Fig 1: Location Of Engine Control System Component Parts (1 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

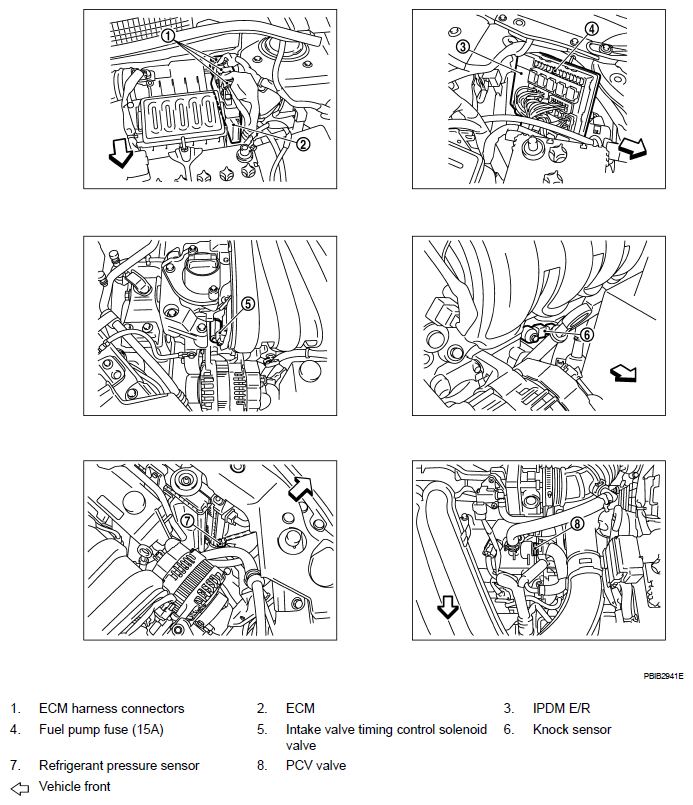

Fig 2: Location Of Engine Control System Component Parts (2 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

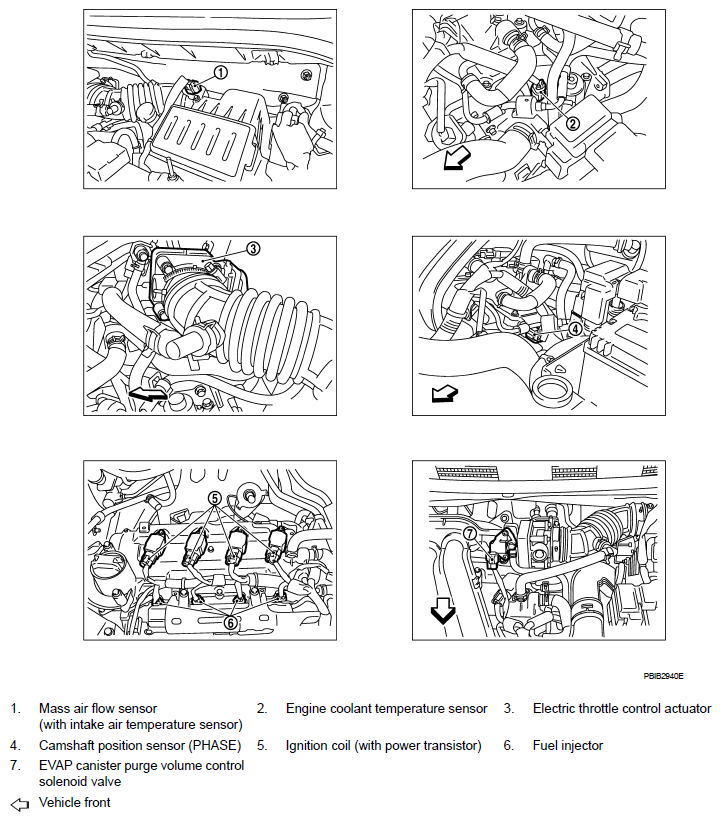

Fig 3: Location Of Engine Control System Component Parts (3 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

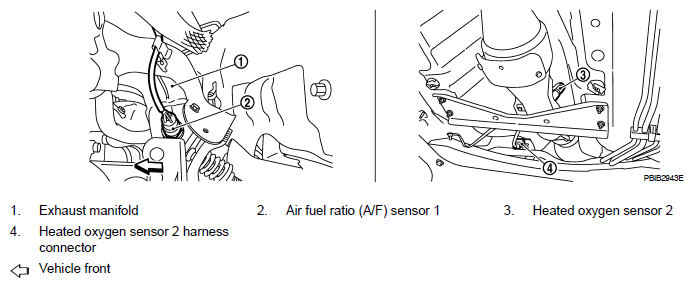

Fig 4: Location Of Engine Control System Component Parts (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

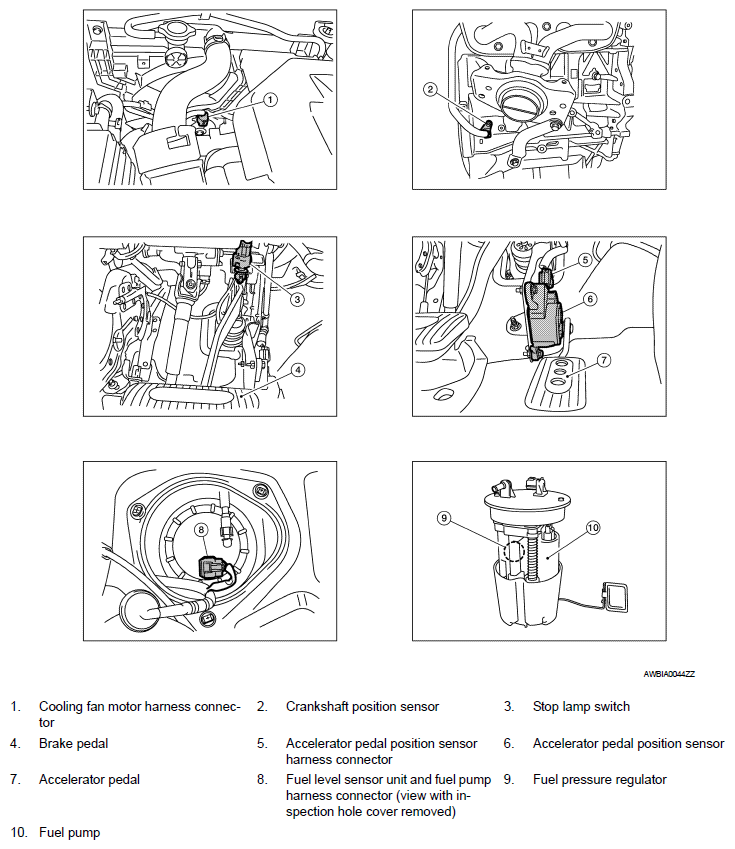

Fig 5: Location Of Engine Control System Component Parts (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Location Of Engine Control System Component Parts (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
