Power Window System: Schematic

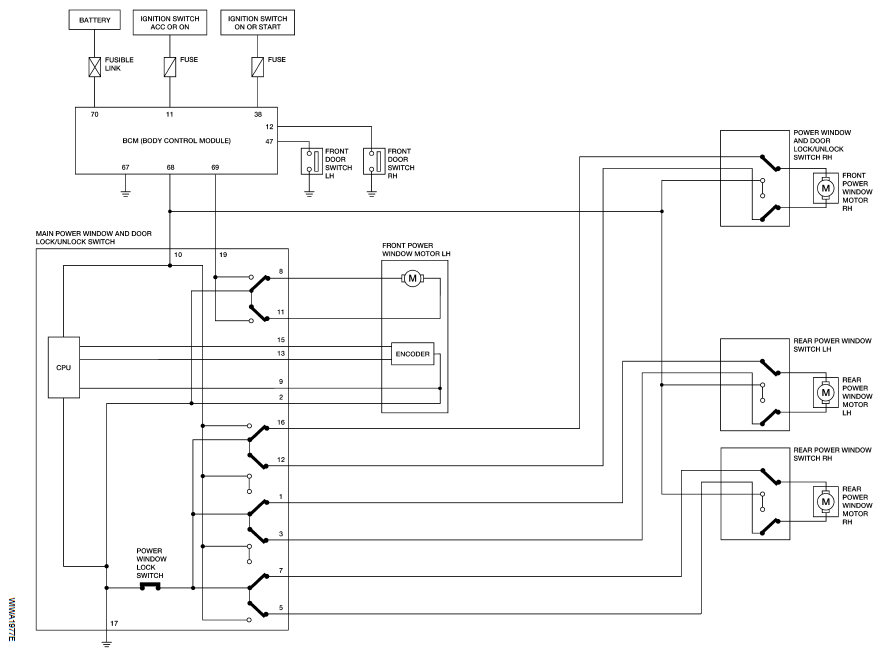

Fig 1: Power Window System Schematic

G06546969

Courtesy of NISSAN MOTOR CO., U.S.A.
