Removal and Installation: Components

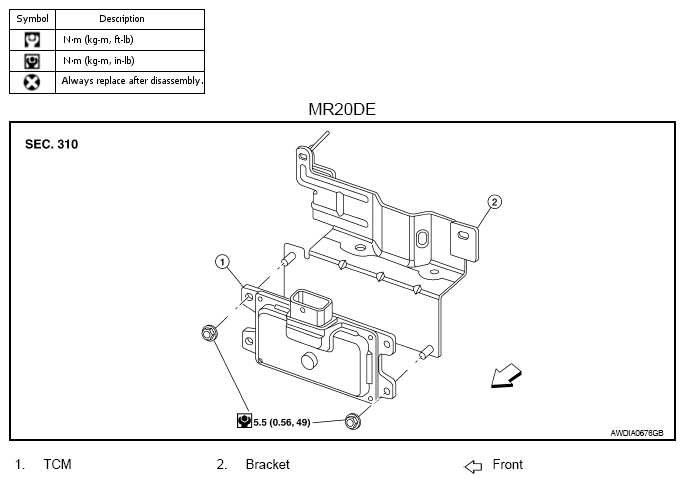

Fig 1: Exploded View Of TCM Components - MR20DE With Torque Specifications
G07139199Courtesy of NISSAN MOTOR CO., U.S.A.

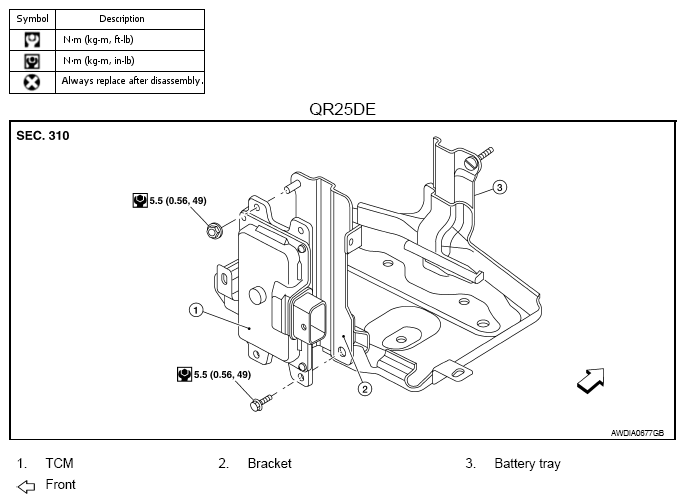

Fig 1: Exploded View Of TCM Components With Torque Specifications - QR25DE
G07139200Courtesy of NISSAN MOTOR CO., U.S.A.
