Automatic Transmission - CVT : Re0F10A
>>
Service Information
>>
On-Vehicle Service
>>
Control Valve
>>
Notes
Control Valve: Notes

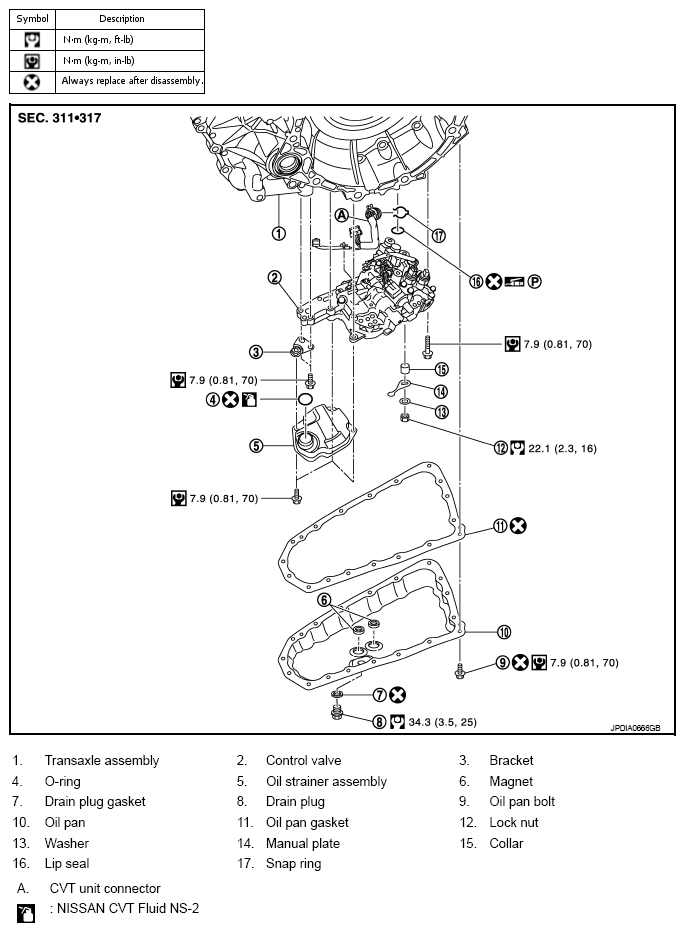

Fig 1: Exploded View Of Control Valve Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
