Removal and Installation: Components

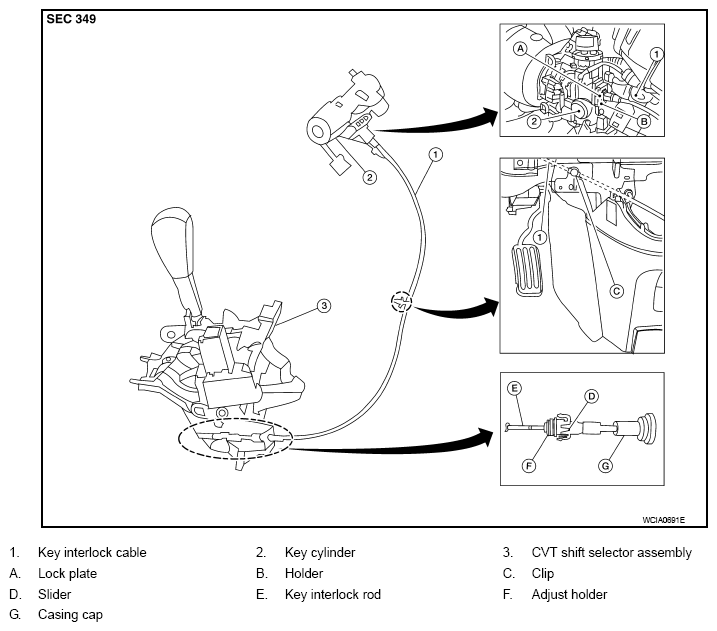

Fig 1: Exploded View Of Key Interlock Cable Components

G07139220

Courtesy of NISSAN MOTOR CO., U.S.A.
