Automatic Transmission - CVT : Re0F10A
>>
Service Information
>>
CVT System
>>
Hydraulic Control System
Hydraulic Control System

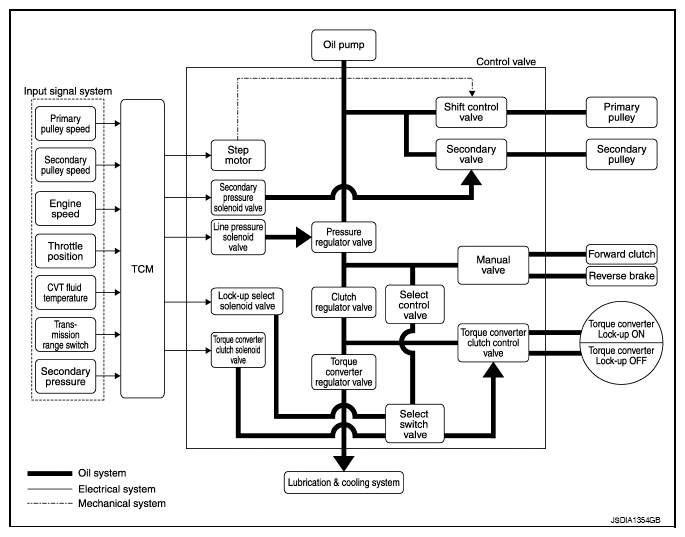

Fig 1: Hydraulic Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
