Mil And Data Link Connector: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

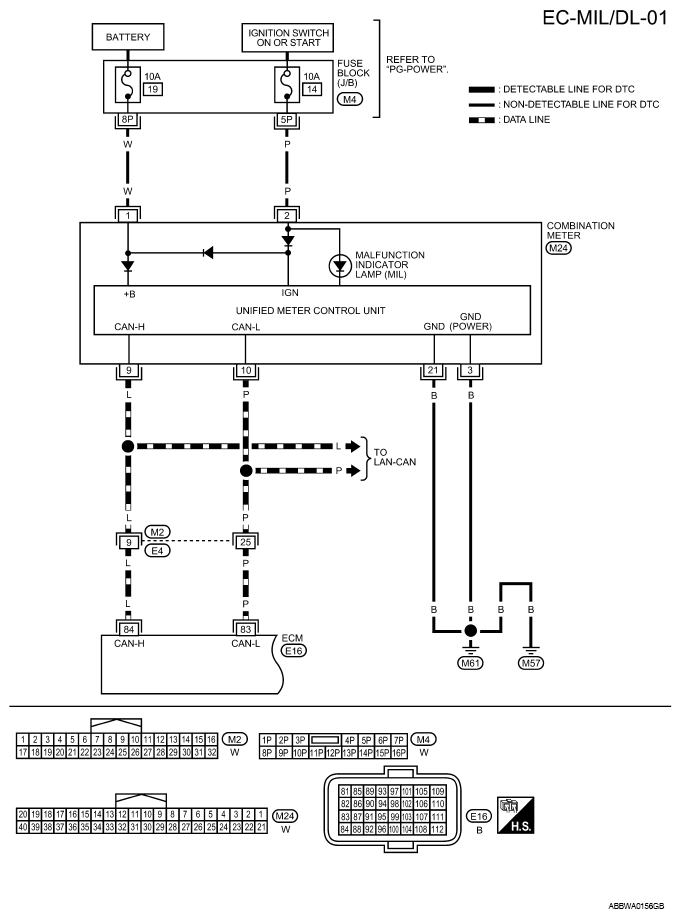

Fig 1: Wiring Diagram - EC-MIL/DL-01
G07138404Courtesy of NISSAN MOTOR CO., U.S.A.

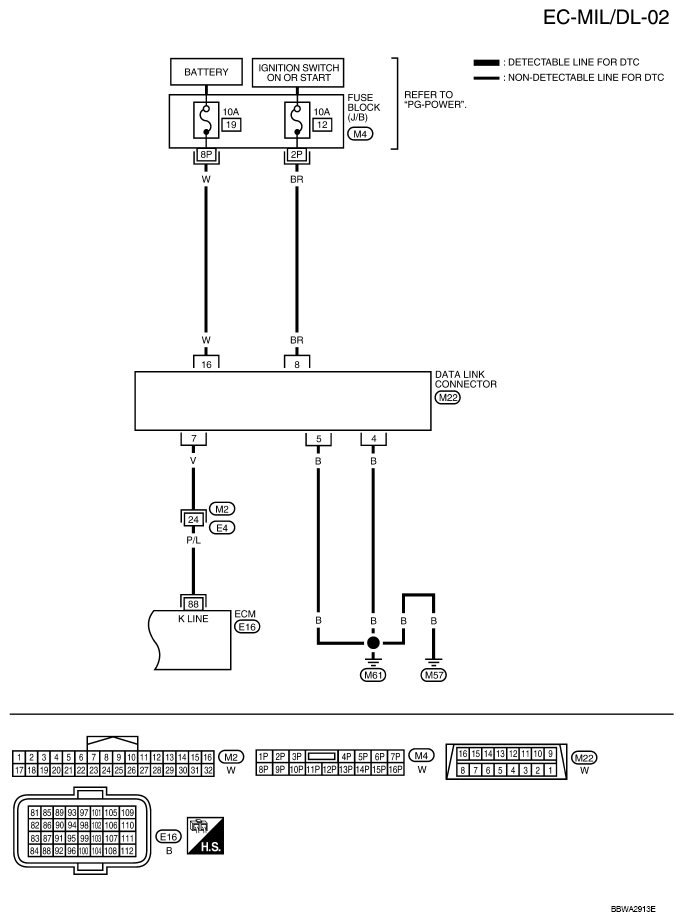

Fig 2: Wiring Diagram - EC-MIL/DL-02
G07138405Courtesy of NISSAN MOTOR CO., U.S.A.
