System - Engine Mechanical&Other

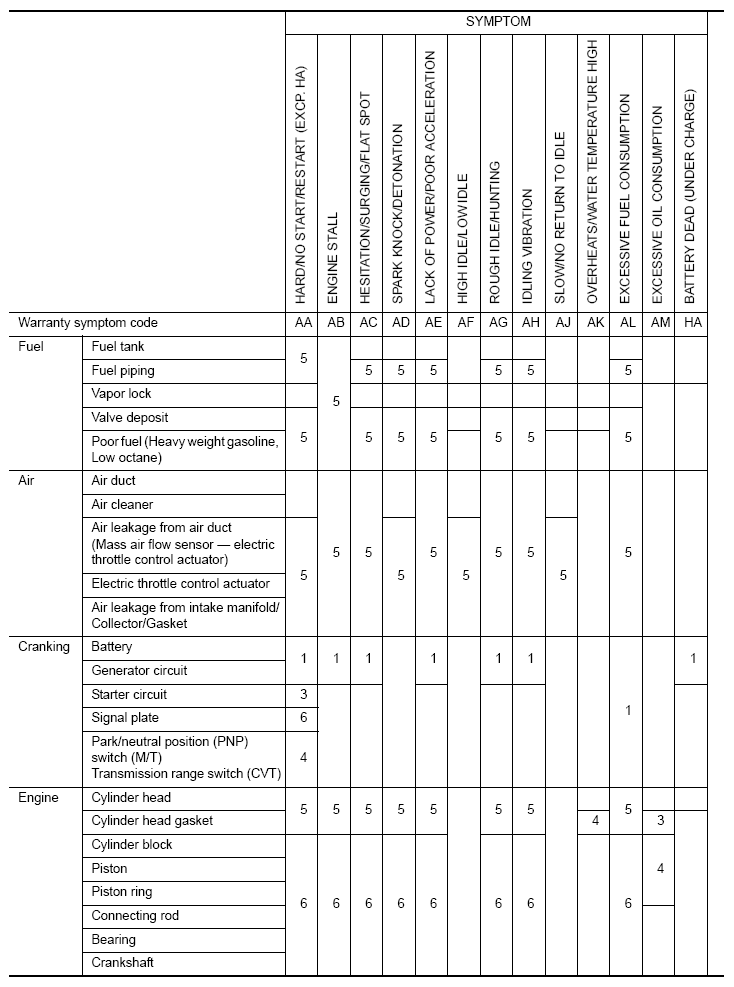

Fig 1: Engine Mechanical & Other - Symptom Matrix Chart (1 Of 2)
G07139742Courtesy of NISSAN MOTOR CO., U.S.A.

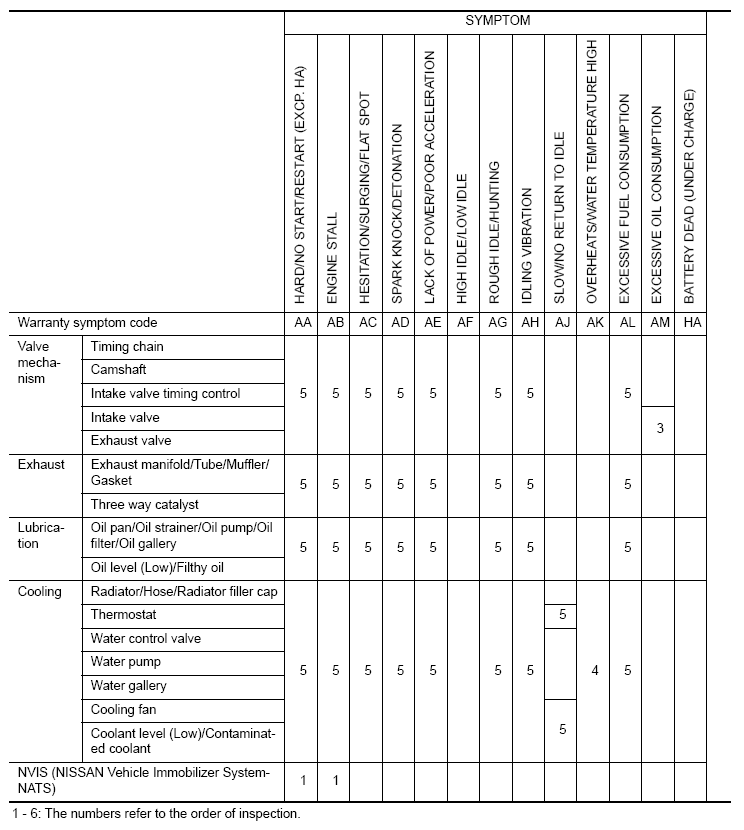

Fig 2: Engine Mechanical & Other - Symptom Matrix Chart (2 Of 2)
G07139743Courtesy of NISSAN MOTOR CO., U.S.A.
