Disassembly and Assembly: Notes

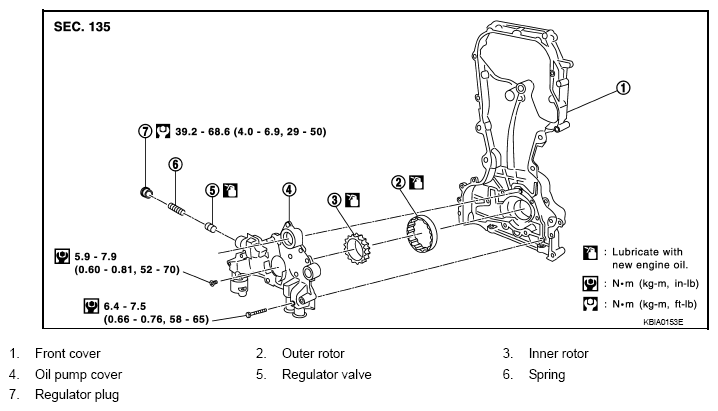

Fig 1: Exploded View Of Oil Pump Components With Torque Specifications
G07137669Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Before installation, apply new engine oil to the parts as shown in the figure.
