Exhaust System: Component

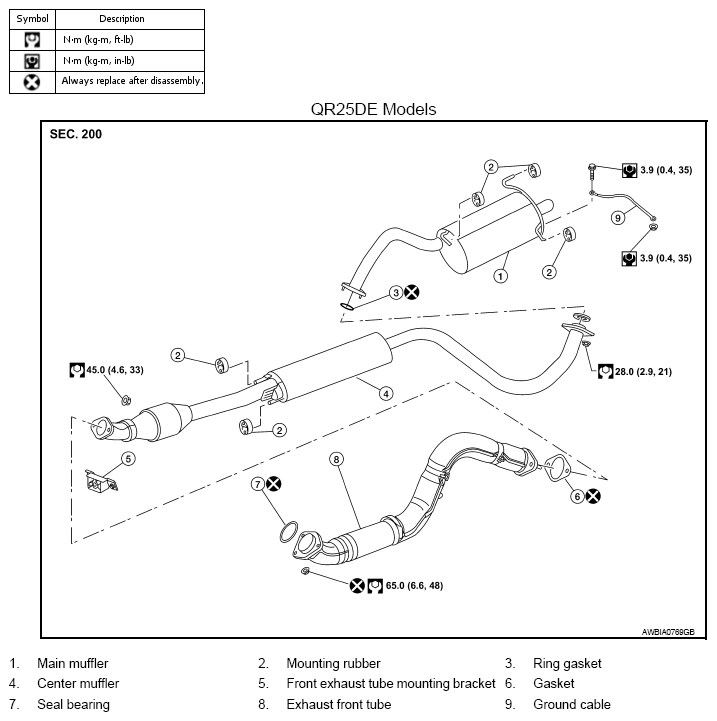

Fig 1: Exploded View Of Muffler, Mounting Rubber, Ring Gasket, Seal Bearing & Exhaust Front Tube With Torque Specifications

G07138419

Courtesy of NISSAN MOTOR CO., U.S.A.
