Starter
>>
Removal and Installation QR25DE
>>
Notes
Removal and Installation QR25DE: Notes

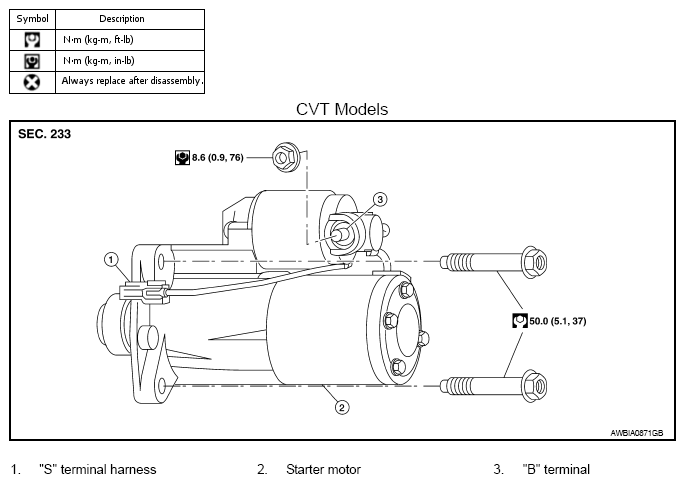

Fig 1: Exploded View Of S Terminal Harness, B Terminal & Starter Motor With Torque Specifications (CVT Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

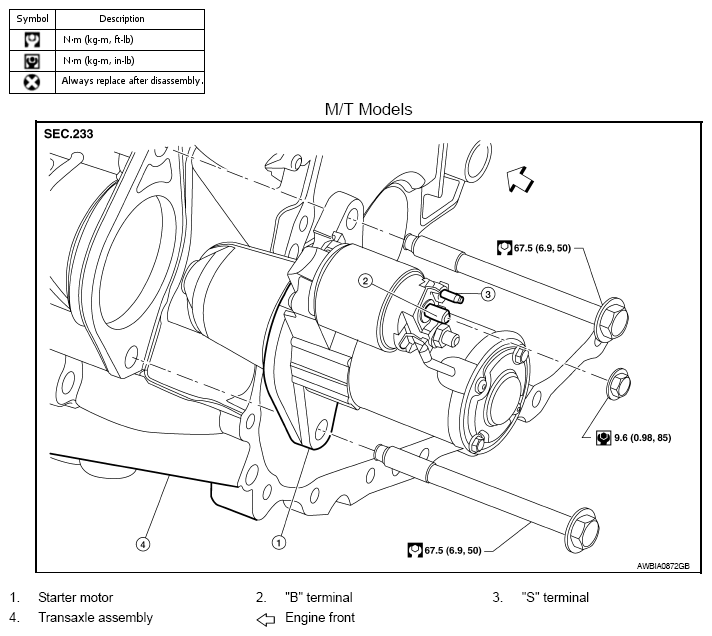

Fig 2: Exploded View Of Starter Motor, B & S Terminal & Transaxle Assembly With Torque Specifications (M/T Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
