IPDM E/R Terminal Arrangement

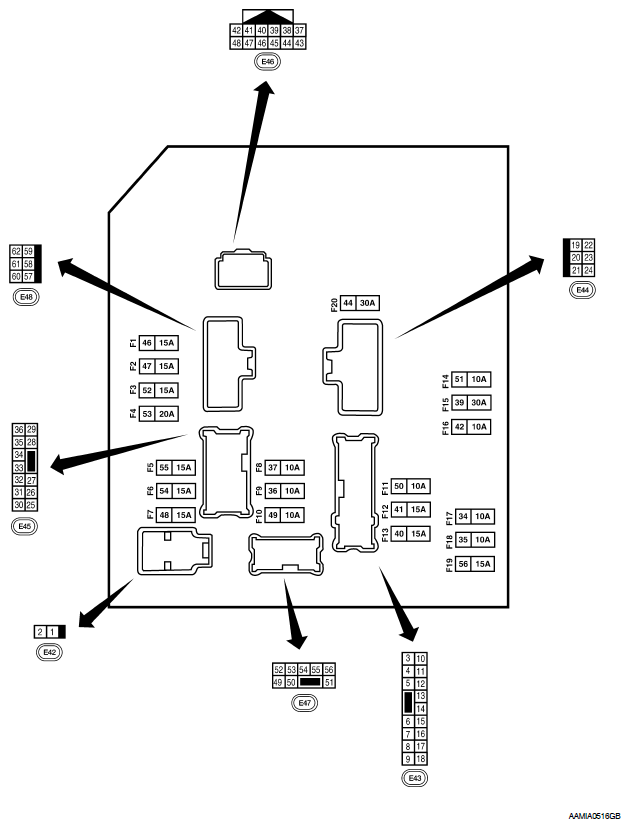

Fig 1: Location Of IPDM E/R Terminals
G07143479Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers represent the fuse numbers as they appear in the wiring diagrams
