IPDM E/R Relays

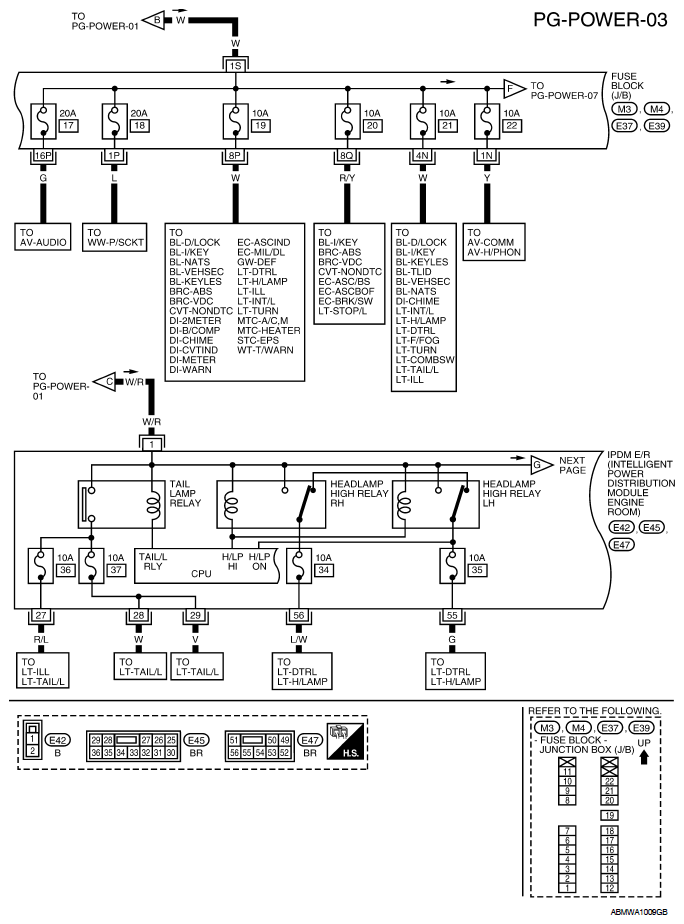

Fig 1: IPDM E/R Relays (1 Of 8)
G07143465Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Headlamp High Relay RH
Headlamp High Relay LH
Tail Lamp Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

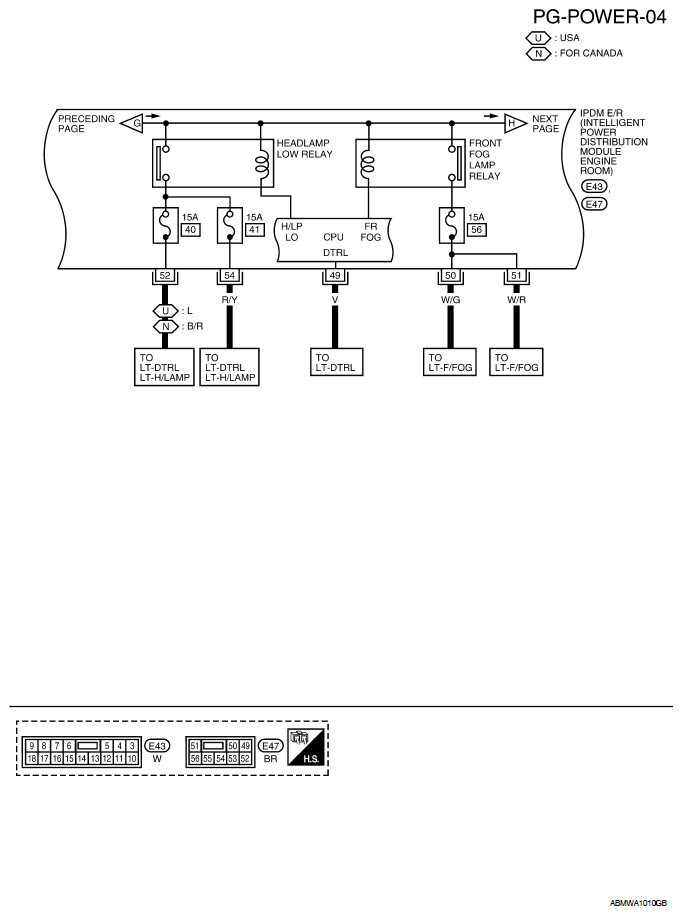

Fig 2: IPDM E/R Relays (2 Of 8)
G07143466Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Fog Lamp Relay
Headlamp Low Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
Fig 3: IPDM E/R Relays (3 Of 8)
G04928725Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Wiper Relay
A/C Relay
Front Wiper High Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
Fig 4: IPDM E/R Relays (4 Of 8)
G05926315Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Throttle Control Motor Relay
ECM Relay
Rear Window Defogger Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

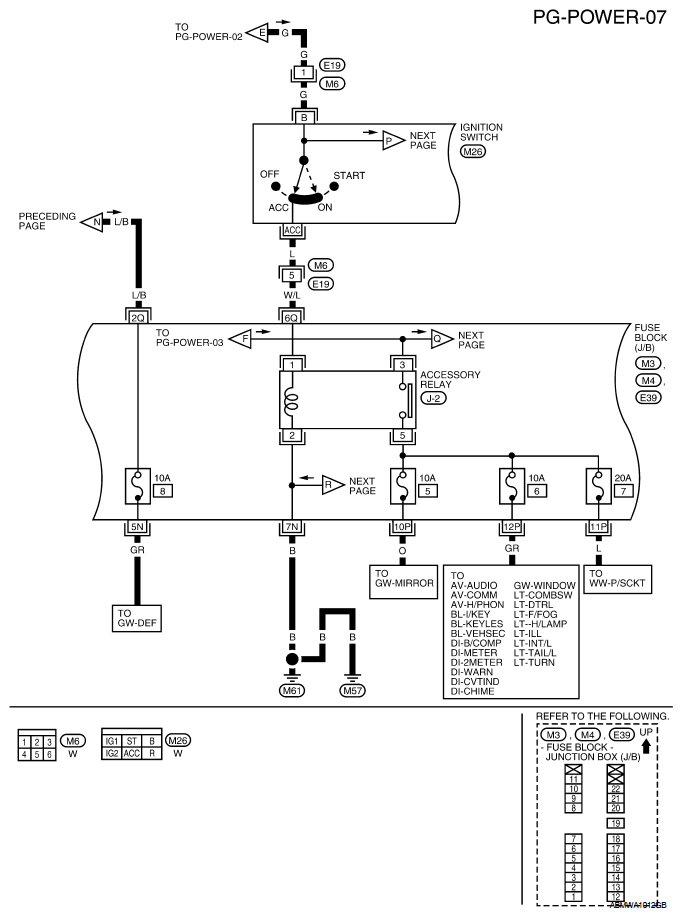

Fig 5: IPDM E/R Relays (5 Of 8)
G07143469Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Accessory Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
Fig 6: IPDM E/R Relays (6 Of 8)
G05926317Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Blower Motor Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

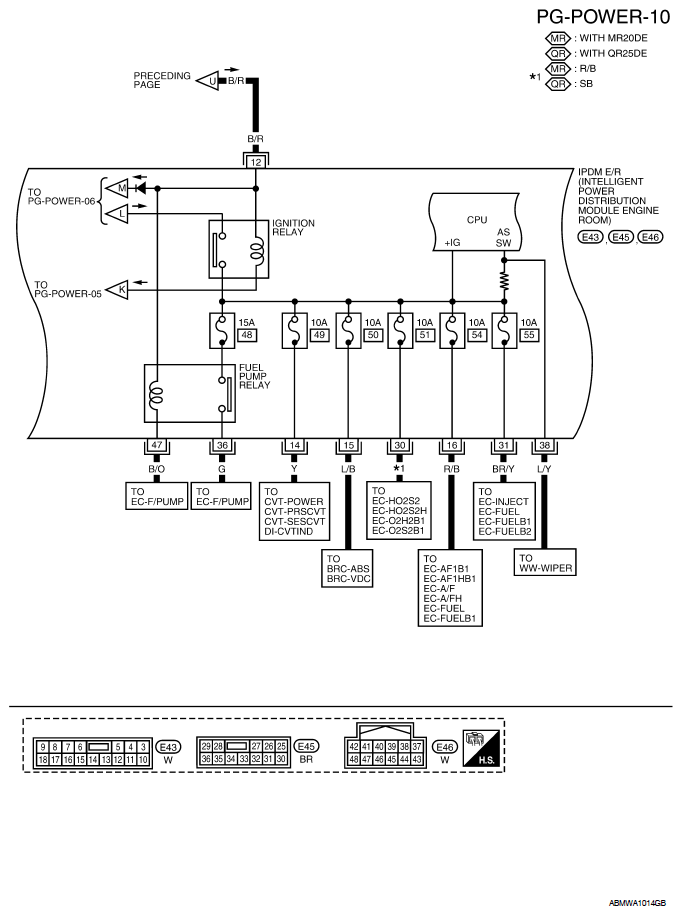

Fig 7: IPDM E/R Relays (7 Of 8)
G07143472Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay
Fuel Pump Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
Fig 8: IPDM E/R Relays (8 Of 8)
G04928731Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R RELAY IDENTIFICATION

RELAY DESCRIPTION
Starter Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
