Engine Control Harness

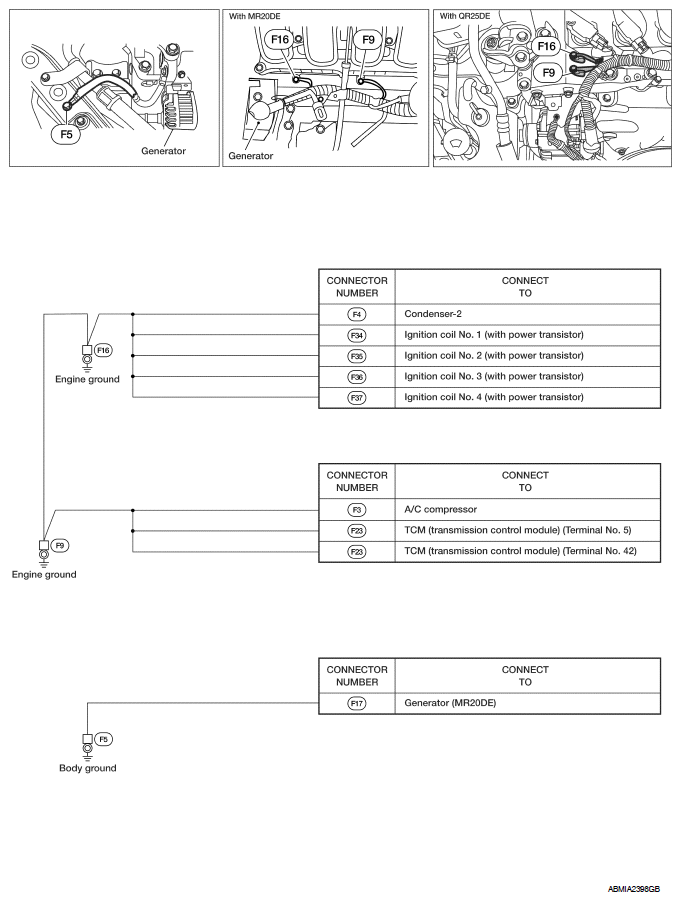

Fig 1: Identifying Engine Control Harness
G07143488Courtesy of NISSAN MOTOR CO., U.S.A.
