Vehicle Security (Theft Warning) System: Schematic

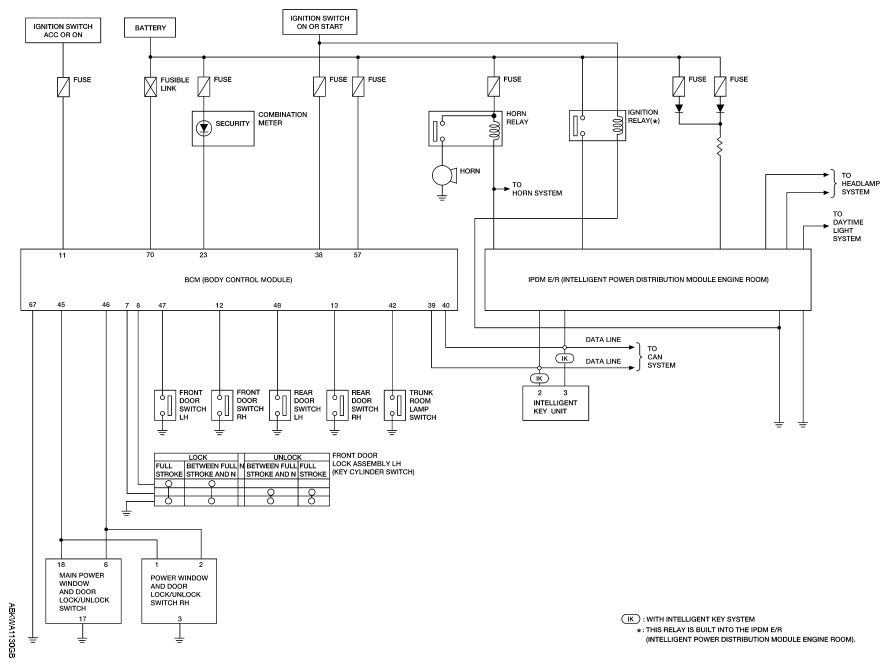

Fig 1: Vehicle Security (Theft Warning) System Schematic Diagram
G07140508Courtesy of NISSAN MOTOR CO., U.S.A.
