Sentra SE-R
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Body, Lock & Security System
>>
Service Information
>>
Remote Keyless Entry System
>>
Wiring Diagram - KEYLES -
Wiring Diagram - KEYLES -

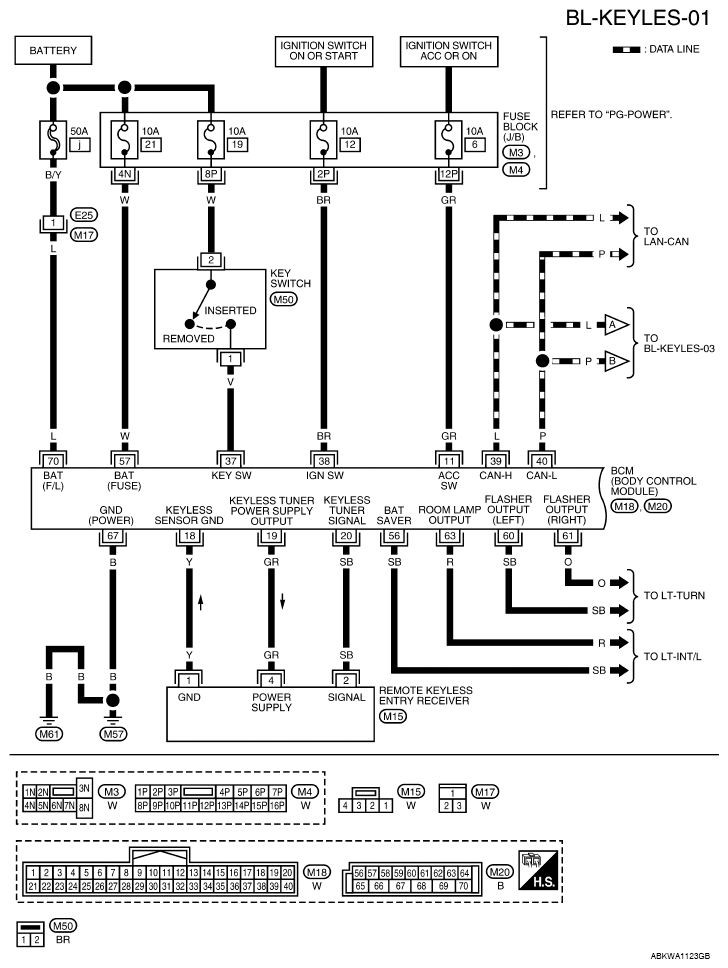

Fig 1: Wiring Diagram - BL-KEYLES-01
Courtesy of NISSAN MOTOR CO., U.S.A.

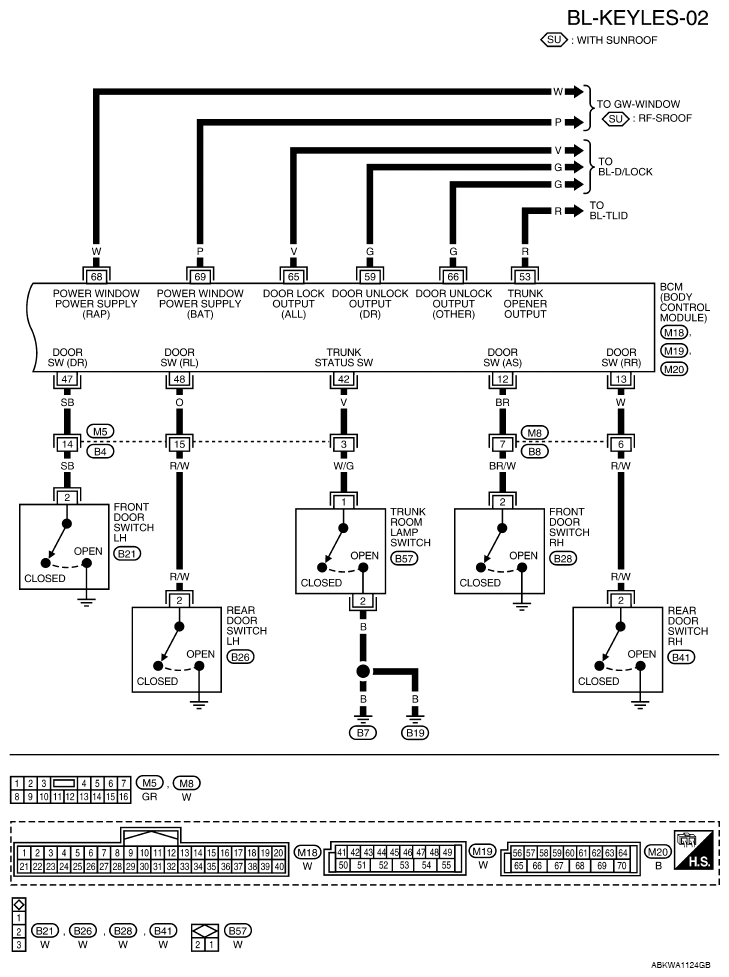

Fig 2: Wiring Diagram - BL-KEYLES-02
Courtesy of NISSAN MOTOR CO., U.S.A.

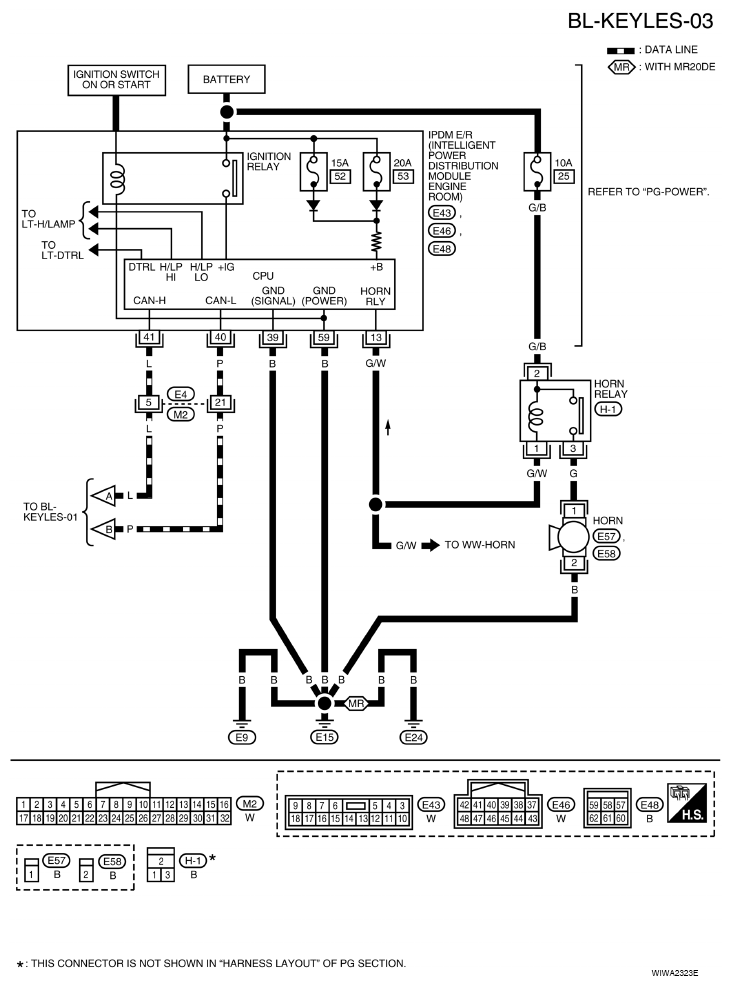

Fig 3: Wiring Diagram - BL-KEYLES-03
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
