Fitting Adjustment: Notes

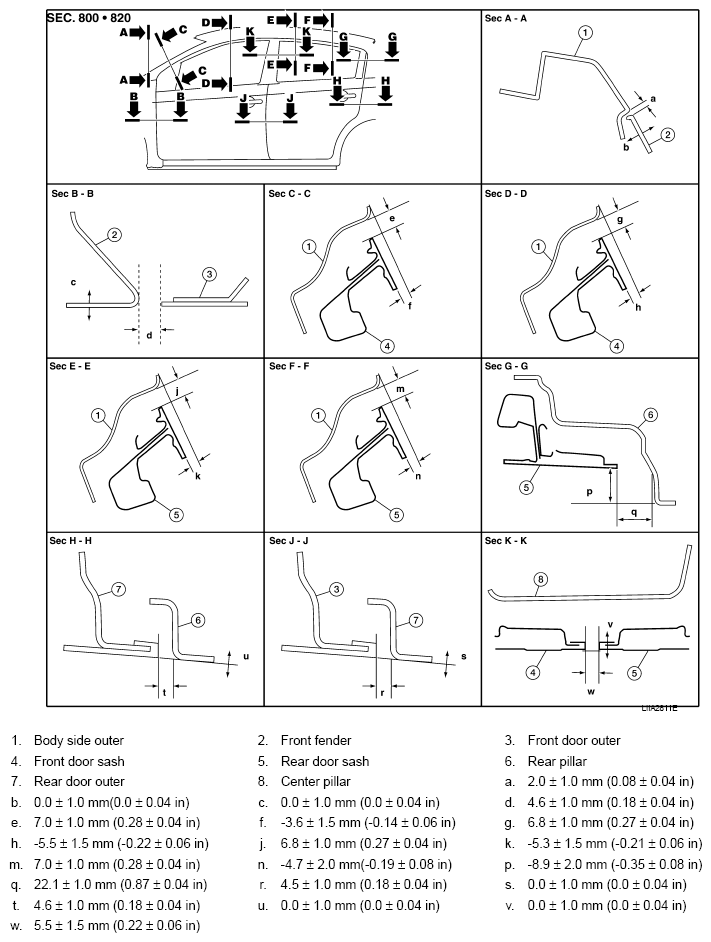

Fig 1: Illustrating Door Fitting Adjustment

G07140460

Courtesy of NISSAN MOTOR CO., U.S.A.
