Bulb Replacement

  1. Turn lighting switch OFF.
  2. Position aside the front fender protector as necessary. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect front fog lamp connector (1).
  4. Turn bulb socket (2) counterclockwise unlock and remove it.
  5. Remove bulb from its socket.

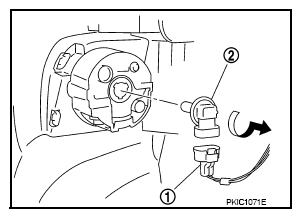

    Fig 1: View Of Turning Bulb Socket
    G07143206Courtesy of NISSAN MOTOR CO., U.S.A.
