Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Transmission - CVT : Re0F10A
>>
Service Information
>>
Shift Control System
>>
Removal and Installation
>>
Control Cable Components
Control Cable Components

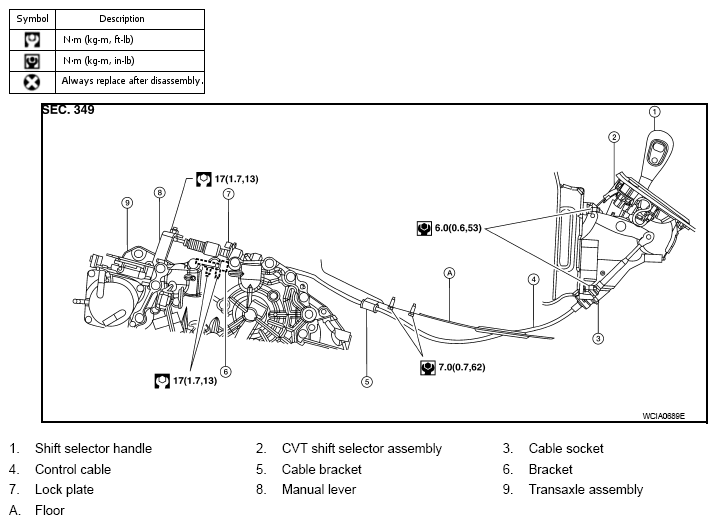

Fig 1: Exploded View Of Control Cable Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
