Rear View Camera System

When the shift selector is in the R position, the AV control unit shows a view to the rear of the vehicle. Lines which indicate the vehicle clearance and distances are also displayed.

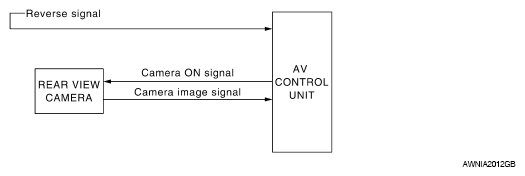

Rear View Camera System Diagram

Fig 1: Rear View Camera System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

SYSTEM DESCRIPTION

Part name	Description
AV control unit	Sends camera ON signal to the rear view camera Receives camera image signal from the rear view camera
Rear view camera	Receives camera ON signal from the AV control unit Sends image signal to the AV control unit
