Audio Unit (Base System) Harness Connector Terminal Layout

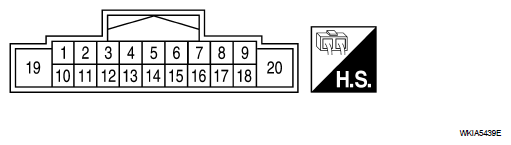

Fig 1: Identifying Audio Unit (Base System) Harness Connector Terminals

G07144546

Courtesy of NISSAN MOTOR CO., U.S.A.
