Home >> Nissan-Datsun >> 2011 >> Rogue S, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Component And System Testing - For CALIFORNIA >> Symptom Diagnosis >> Engine Control System Symptoms >> Symptom Table >> System - Engine Mechanical & Other

System - Engine Mechanical & Other

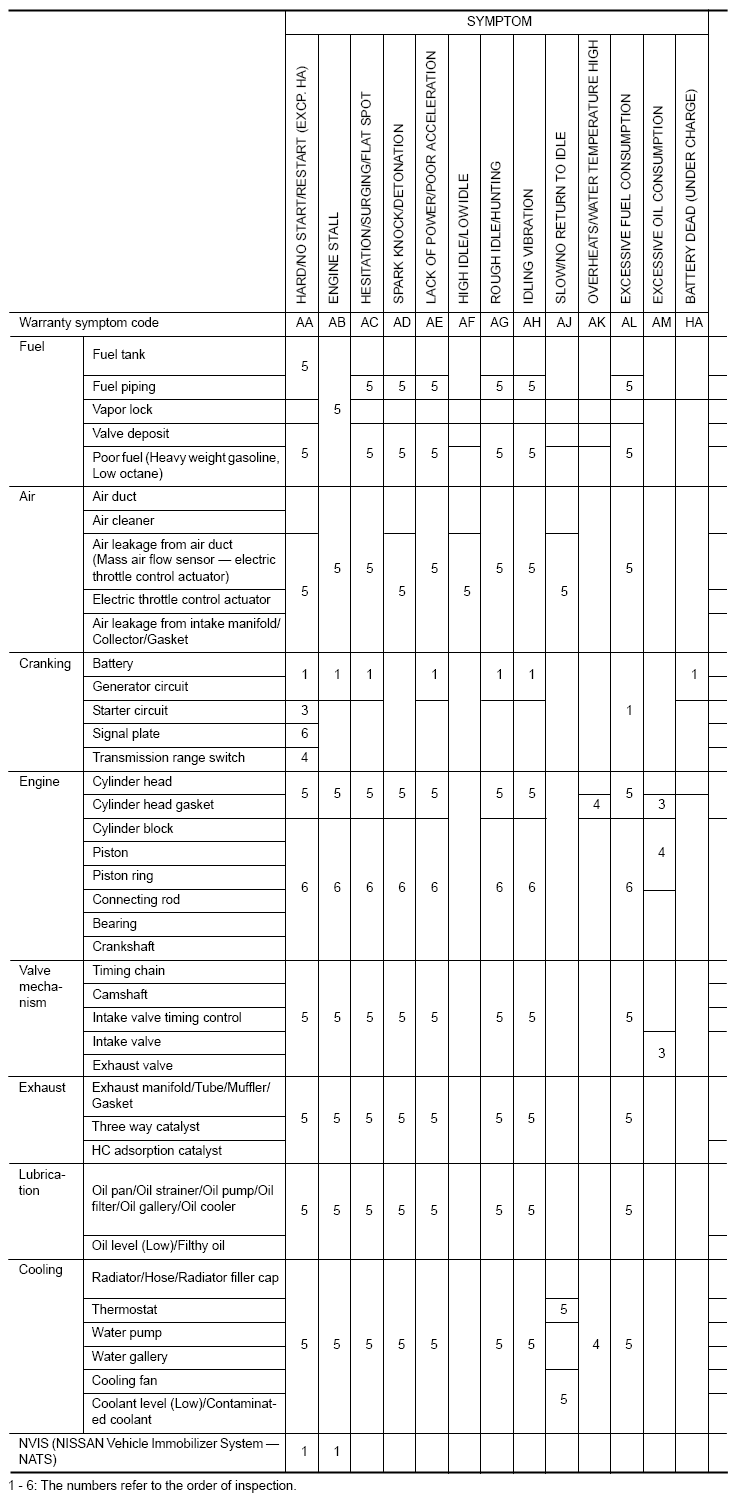

Fig 1: Engine Control System Symptom Chart - Engine Mechanical & Other
G07140950Courtesy of NISSAN MOTOR CO., U.S.A.
