Exploded View: Disassembly

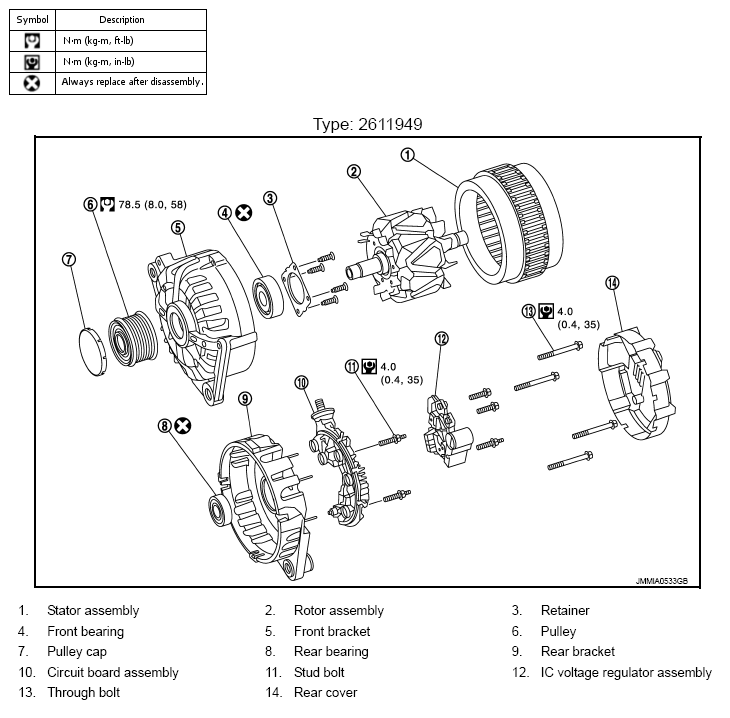

Fig 1: Exploded View Of Alternator With Torque Specifications - Type 2611949

G07135862

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
