Power Consumption Control System
>>
Component Parts Location
Component Parts Location

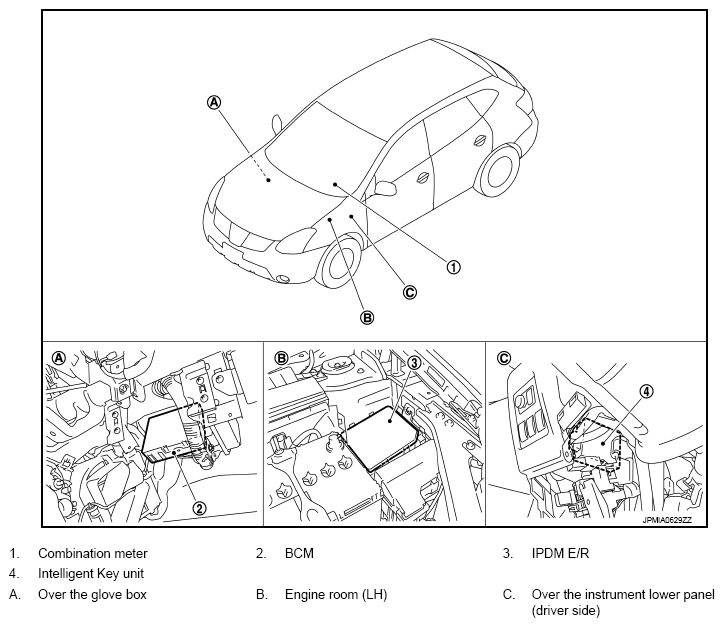

Fig 1: Locating Power Consumption Control System Component Parts
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
