Inspection and Adjustment: Notes

Inspection after Removal

Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.

• Wire wear
• Regulator deformation

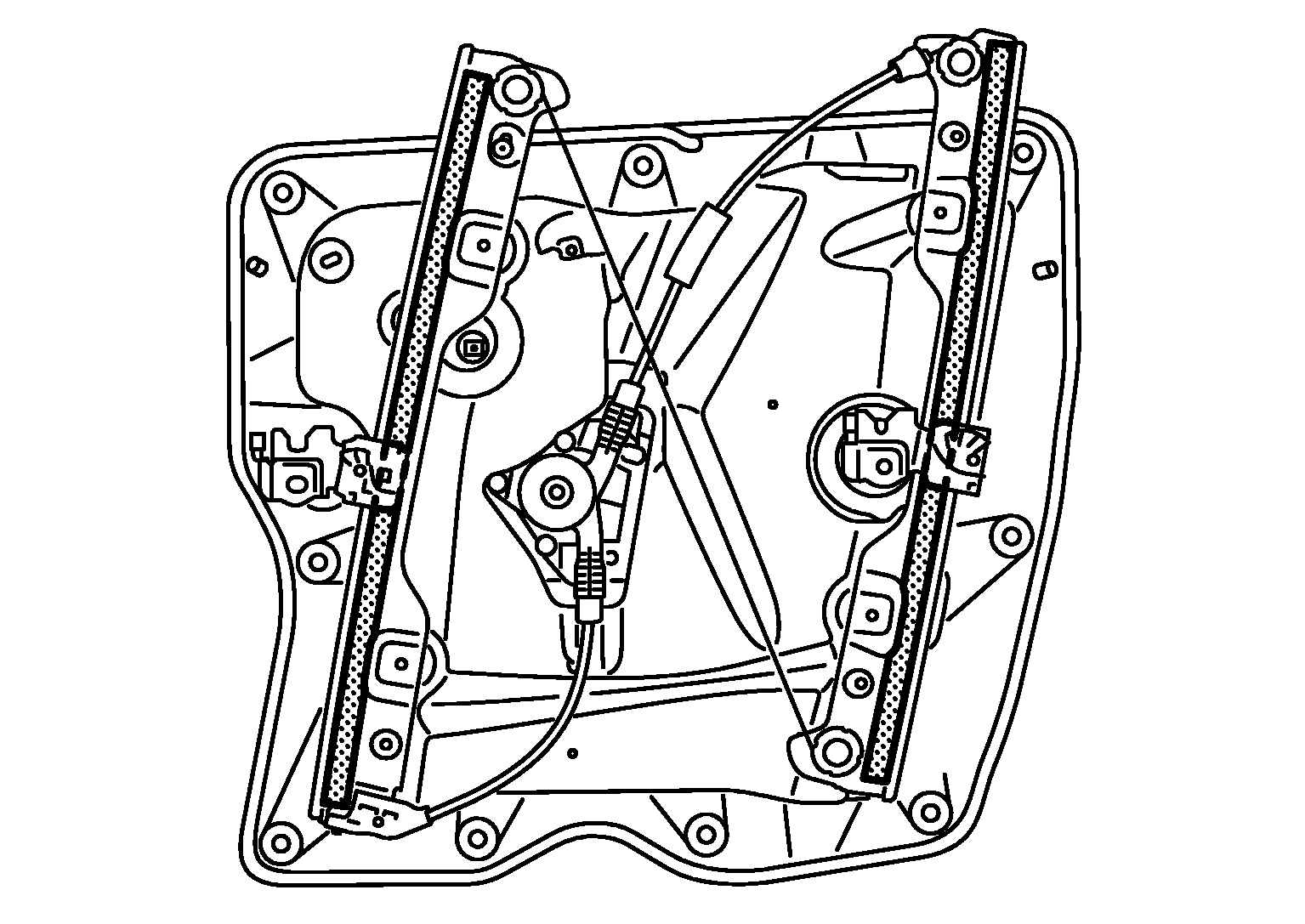

  Fig 1: View Of Grease Application Areas

  Courtesy of NISSAN MOTOR CO., U.S.A.

The shadow area in the figure show the application points of the multi-purpose grease.
