SRS Airbag Control System
>>
System Description
>>
System
>>
System Description
>>
System Diagram
System Diagram

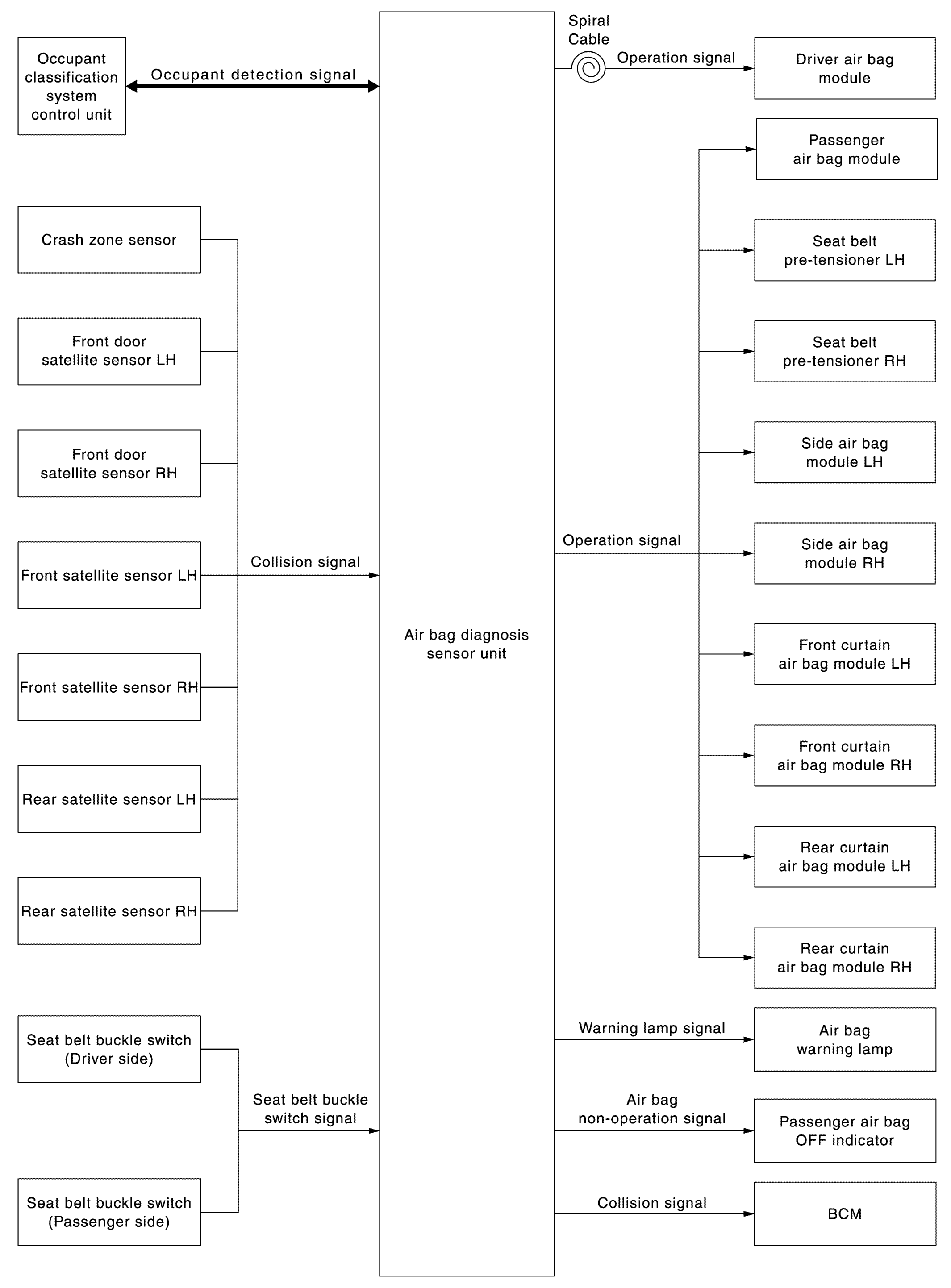

Fig 1: SRS Airbag Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
