Home
>>
Nissan-Datsun
>>
2011
>>
Quest SV
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Removal And Installation
>>
EVAP Canister
>>
Exploded View
Exploded View

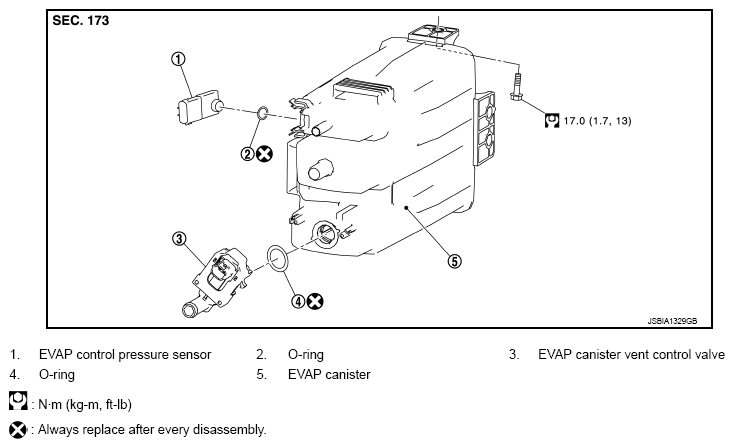

Fig 1: EVAP Canister Connector With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
