Exploded View: Disassembly

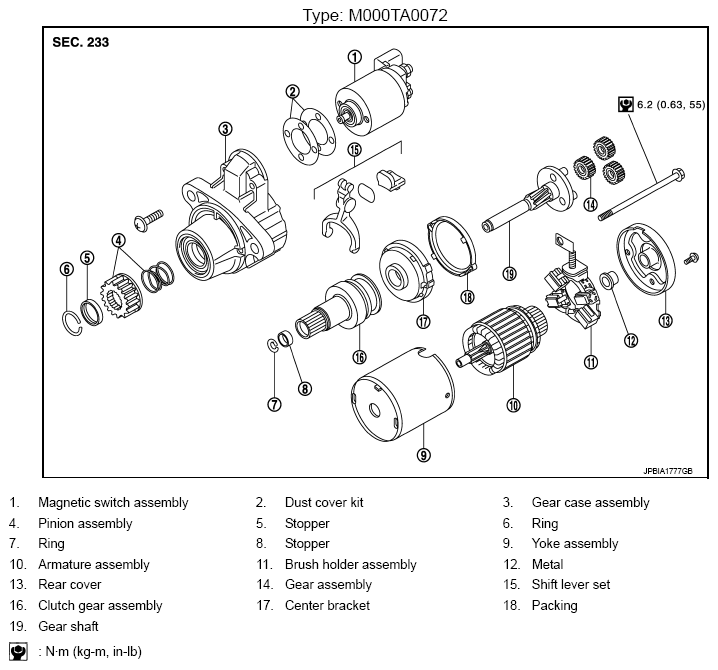

Fig 1: Disassembled View Of Starter Motor With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
